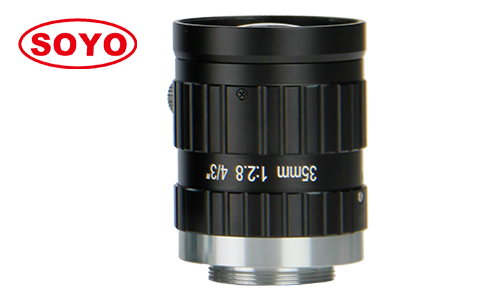

Product name：S43MV3528-20M ( 35mm ) 4/3"

Product description：

35mm 4/3" 20MP Megapixel Lenses Machine Vision FA CCTV Lens <0.04% Low Distortion Industrial Automation Positioning Measurement Semiconductor AOI SMT 8K Camera Optics C Mount China

S43MV3528-20M

High resolution : 20 megapixel covering all 4K & 1080P
Large format: 4/3" size covering 1", 3/4", 2/3", 1/1.8", 1/2" camera
Low distortion : <0.04% low distortion
Small size: Small size disign makes it various application
Magnification : 0.0069x ~ 0.1805x
Application : Automation, machine vision, medical, life science, SMT, AOI.

Model 型号		S43MV3528-20M
Resolution 像素		20 Megapixel
Format 靶面		4/3"
Focal Length 焦距		35mm
B.F.L 光学后焦		22.9mm
Aperture (Close) 光圈		F2.8 Manual Iris
Angle of View (°) 视场角 DHV	4/3"	352821
	1"	262115.5
	2/3"	1814.311
M.O.D 最近物距		0.2m
Distortion 畸变		<0.04%
Filter size 滤镜螺纹		M35.5*0.5

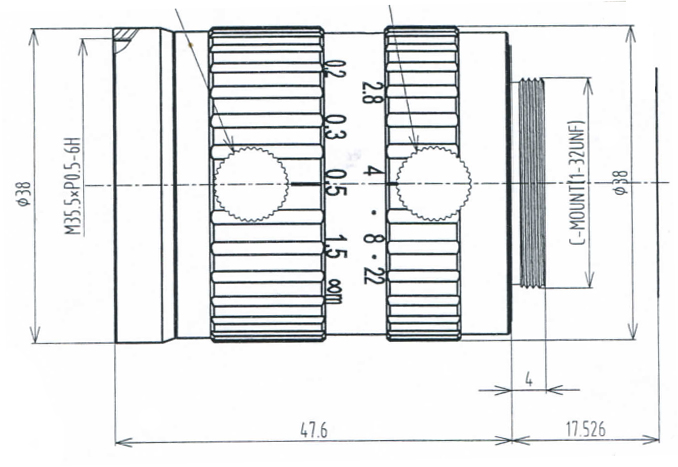

Size 尺寸		Φ38*47.6mm
Mount 接口		C
Weight 重量		330g
