Current:Home > Products - 4/3" FA Megapixel Lens - S43MV2528-20M ( 25mm ) 4/3"

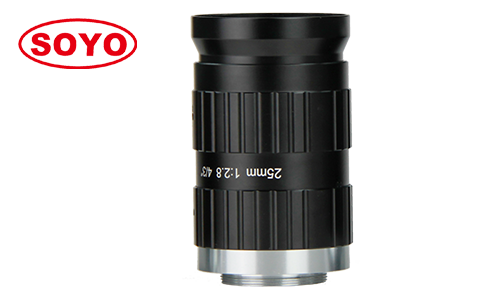

Product name:S43MV2528-20M ( 25mm ) 4/3"
Product description:


25mm 4/3" 20MP Megapixel Lenses Machine Vision FA Lens <0.3% Low Distortion Industrial Automatic Factory Automation Positioning Measurement Scanning /Medical /Biometry 8K Camera Accessory

S43MV2528-20M

  • High resolution :      20 megapixel covering all 4K & 1080P
  • Large format:          4/3" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion :        <0.3% low distortion
  • Small size:               Small size disign makes it various application
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.



Model 型号

S43MV2528-20M

Resolution 像素

20 Megapixel

Format 靶面

4/3"

Focal Length 焦距

25mm

B.F.L 光学后焦

29.6mm

Aperture  (Close) 光圈

F2.8 Manual Iris

Angle of View (°)
视场角 D*H*V

4/3"

46*38*29

1"

34.2*28*21

2/3"

24*19.2*15

M.O.D 最近物距

0.1m

Distortion 畸变

<0.3%

Filter size 滤镜螺纹

M35.5*0.5

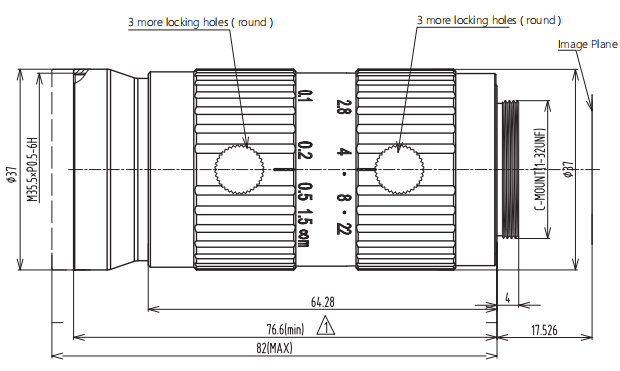

Size 尺寸

Φ37*78mm

Mount 接口

C

Weight 重量

330g
