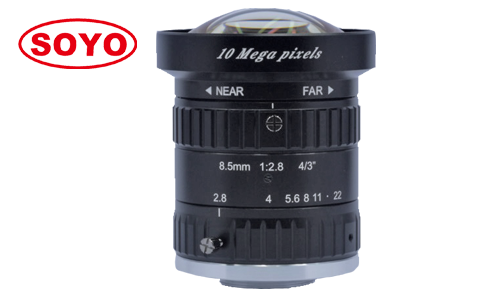

Product name：S43MV0828-10M ( 8.5mm ) 4/3"

Product description：

8.5mm 4/3" 10MP Megapixel Lenses Machine Vision FA <-4.66% Low Distortion Industrial Automation SMT AOI Semiconductor Color Sort Recognition Positioning Measurement Camera CCTV Lens China Optics Asseccory

High resolution : 10 megapixel covering all 4K & 1080P
Large format: 4/3" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
Low distortion : -4.66% low distortion
Small size: Small size disign makes it various application
Application : Automation, machine vision, medical, life science, SMT, AOI.

Model 型号		S43MV0828-10M
Resolution 像素		10 Megapixel
Format 靶面		4/3"
Focal Length 焦距		8.5mm
B.F.L 光学后焦		18.87mm
Aperture (Close) 光圈		F2.8 Manual iris
Angle of View (°) 视场角 DHV	4/3"	*1079578*
	1"	*877458*
	2/3"	/
M.O.D 最近物距		0.5m

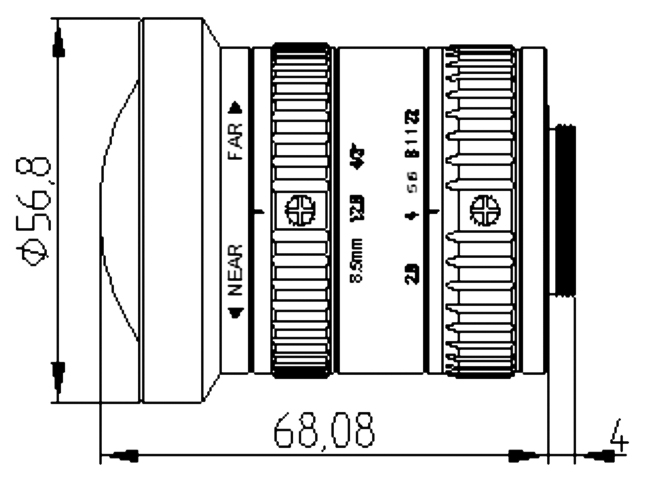

Size 尺寸		Φ*58.6172.08mm**
Distortion 畸变		-4.66%
Filter Size 滤镜螺纹		/
Mount 接口		C
Weight 重量		450g
