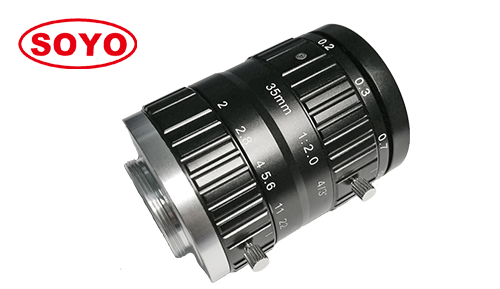

Product name：S43MV3520-10M ( 35mm ) 4/3"

Product description：

35mm 4/3" 10MP Megapixel Lenses Machine Vision FA <-0.56% Low Distortion Industrial Automation SMT AOI Semiconductor Color Sort Recognition Positioning Measurement Camera CCTV Lens China Optics Asseccory

High resolution : 10 megapixel covering all 4K & 1080P
Large format: 4/3" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
Low distortion : -0.56% low distortion.
Small size: Small size disign makes it various application
Application : Automation machine vision, medical, life science, ITS, SMT, AOI.

Model 型号		S43MV3520-10M
Resolution 像素		10 Megapixel
Format 靶面		4/3"
Focal Length 焦距		35mm
B.F.L 光学后焦		18.65mm
Aperture (Close) 光圈		F2.0 Manual iris
Angle of View (°) *视场角 DHV*	4/3"	*373022.4*
	1"	*262116*
	2/3"	*1814.410.8*
M.O.D 最近物距		0.2m

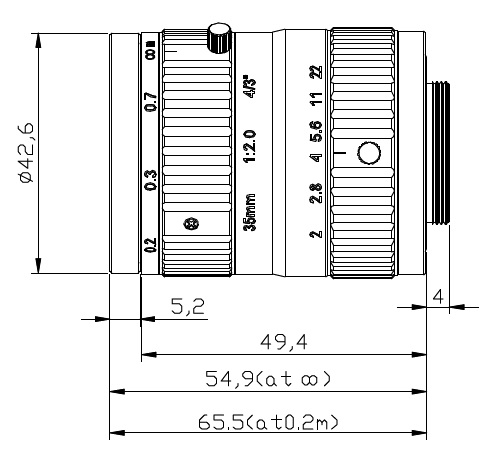

Size 尺寸		Φ*42.665.5mm**
Distortion 畸变		-0.56%
Filter Size 滤镜螺纹		*M40.50.5**
Mount 接口		C
Weight 重量		175g
