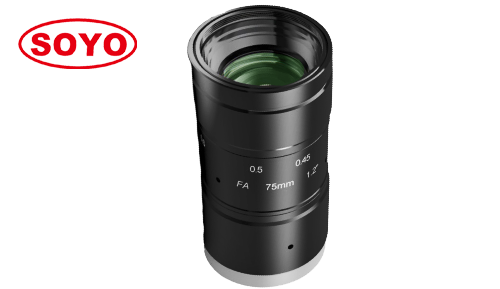

75mm 1.2" 25MP Machine Vision FA <0.01% TV Low Distortion Industrial Recognition 8K Camera Megapixel Optical Lenses Automatic CCTV Lens C Mount
-
High resolution : 25 megapixel cover all 8K & 4K
-
Large format : 1.2" size covering 1.1", 3/4, 2/3", 1/1.8", 1/2" camera
-
Low distortion: <0.01% TV low distortion for machine vision
-
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI
|
Model 型号
|
S12MV7528-25M
|
|
Resolution 像素
|
25 Megapixel
|
|
Format 靶面
|
1.2"
|
|
Focal Length 焦距
|
75mm
|
|
Max image circle 最大像高
|
/
|
|
Aperture (Close) 光圈
|
F2.8 Manual iris
|
|

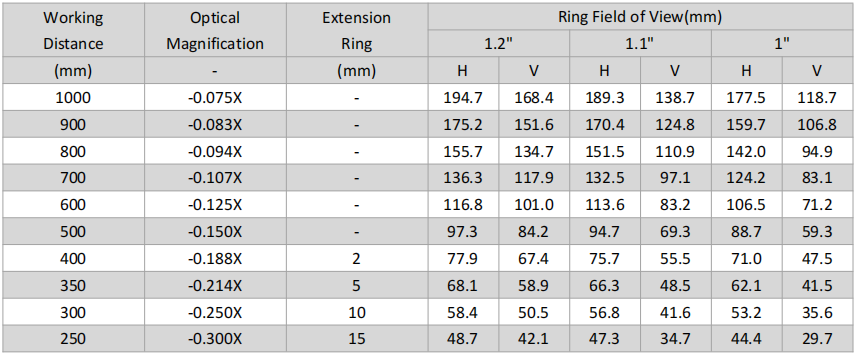

Angle of View (°) 视场角 H*V
|
1.2"
|
1.2" 11.1*9.6 (H*V) | 1.1" 10.8*7.9
|
|
M.O.D 最近物距
|
0.45m
|
|
Relative Illumination 照度
|
/
|
|
Distortion 畸变
|
0.01% ( TV )
|
|
B.F.L 光学后焦
|
/
|
|
CRA 光线夹角
|
/
|
|

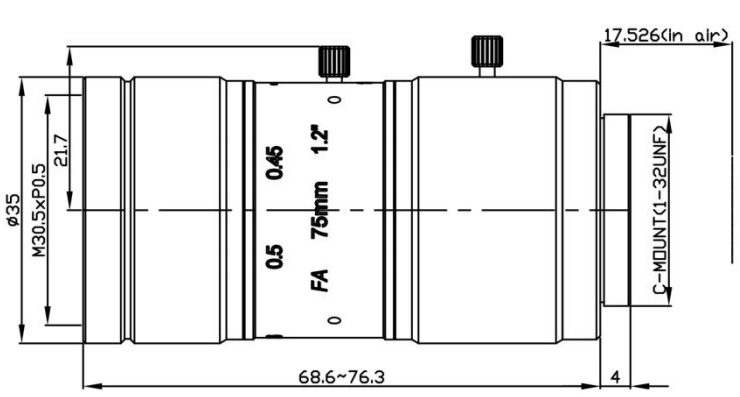

Size 尺寸
|
Φ35*68.6mm
|
|
Filter Size滤镜尺寸
|
M30.5*P0.5
|
|
Mount 接口
|
C
|
|
Weight重量
|
133g
|
|
Marks 备注
|
/
|
|
|
|
|
