Current:Home > Products - 1.2" 1.1" 25MP FA Lens - S11MV3524-20M ( 35mm ) 1.1"

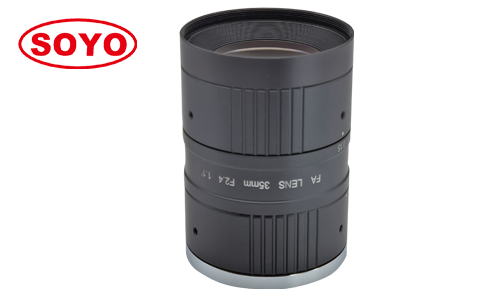

Product name:S11MV3524-20M ( 35mm ) 1.1"
Product description:


35mm 1.1" 20Mpixel Machine Vision FA <0.016% TV Low Distortion Industrial Recognition 8K Camera Megapixel Optical Lenses Automatic CCTV Lens C Mount 超高像素2000万超大靶面1.1英寸35mm焦距机器视觉自动化识别定位面阵镜头

Download 下载 : S11MV3524-20M

  • High resolution :       20 megapixel cover all 8K & 4K
  • Large format :          1.1" size covering 1.1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion:         <0.016% TV / 0.05% Optical low distortion for machine vision
  • Application :             Automation, machine vision, medical, life science


Model 型号

S11MV3524-20M

Resolution 像素

20 Megapixel

Format 靶面

1.1" (2.74μm)

Focal Length 焦距

35mm

Max image circle 最大像高

Φ17.5mm

Aperture (Close) 光圈

F2.4-16 Manual iris

Angle of View (°) 视场角

1.1"

26.9*21.8*16.1

M.O.D 最近物距

0.15m

Relative Illumination 照度

83.2% ( WD=400mm F2.4 )

Distortion 畸变

0.016% ( TV ) ; 0.05% (Optical )

B.F.L 光学后焦

19.5mm , WD=800mm

CRA 光线夹角

6.5°

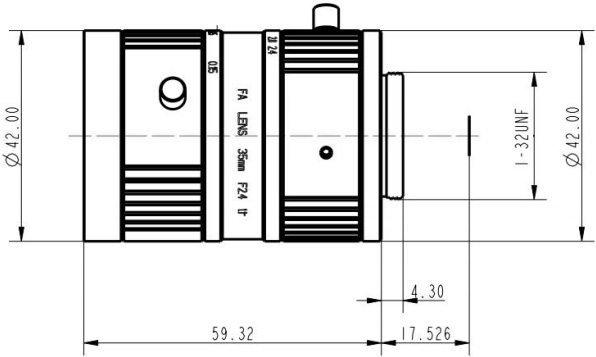

Size 尺寸

Φ42*59.32mm

Filter Size滤镜尺寸

M40.5*P0.5-7H

Mount 接口

C

Weight重量

260g

Marks 备注

AT430~680nm T≥85%;  11G Element
