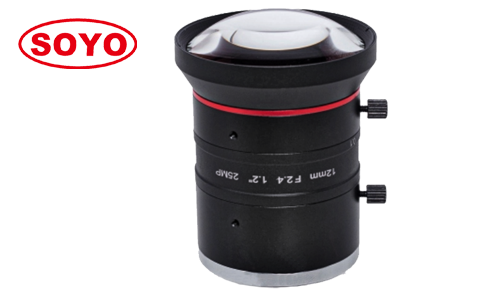

Product name:S12MV1224-25M ( 12mm ) 1.2"
Product description:


12mm 1.2" 25MP Machine Vision FA 0.39% TV Low Distortion Industrial Recognition 8K Camera Megapixel Optical Lenses Automatic CCTV Lens C Mount

  • High resolution :       25 megapixel cover all 8K & 4K 2500万超高像素
  • Large format :          1.2" size covering 1.1", 3/4, 2/3", 1/1.8", 1/2" camera 超大靶面1.2寸
  • Low distortion:         0.39% TV / -0.28% Optical low distortion for machine vision 低畸变
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI

Model 型号

S12MV1224-25M

Resolution 像素

25 Megapixel

Format 靶面

1.2" (2.74μm)

Focal Length 焦距

12mm

Max image circle 最大像高

Φ19.3mm

Aperture (Close) 光圈

F2.4 Manual iris

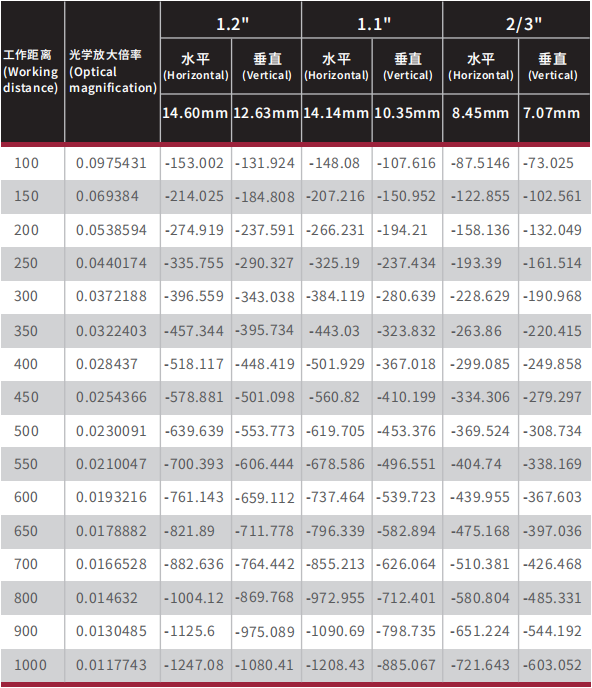

Angle of View (°) 视场角

1.2"

76.2*62.4*55.33

M.O.D 最近物距

0.1m

Relative Illumination 照度

81.4% ( WD=300mm F2.8 )

Distortion 畸变

0.39% ( TV ) ; -0.28% (Optical )

B.F.L 光学后焦

18.5mm , WD=600mm

CRA 光线夹角

6.02°

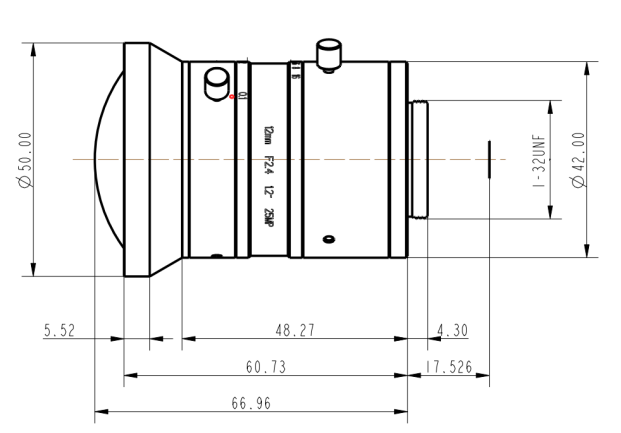

Size 尺寸

Φ50*66.96mm

Projector 投影解像

Center 200lp/mm; Edge Φ16 160lp/mm

Mount 接口

C

Weight重量

300g

Marks 备注

AT430~680nm T≥85%; 15G Element
