Current:Home > Products - 1.2" 1.1" 25MP FA Lens - S12MV5024-25M ( 50mm ) 1.2"

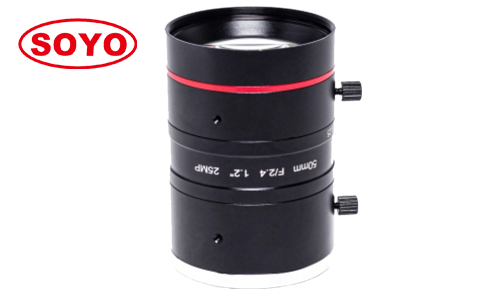

Product name:S12MV5024-25M ( 50mm ) 1.2"
Product description:


50mm 1.2" 25MP Machine Vision FA <0.011% TV Low Distortion Industrial Recognition 8K Camera Megapixel Optical Lenses Automatic

  • High resolution :       25 megapixel cover all 8K & 4K
  • Large format :          1.1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion:         <0.011% TV / 0.055% Optical low distortion for machine vision
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI

Model 型号

S12MV5024-25M

Resolution 像素

25 Megapixel

Format 靶面

1.2" (2.74μm)

Focal Length 焦距

50mm

Max image circle 最大像高

Φ19.3mm

Aperture (Close) 光圈

F2.4 Manual iris

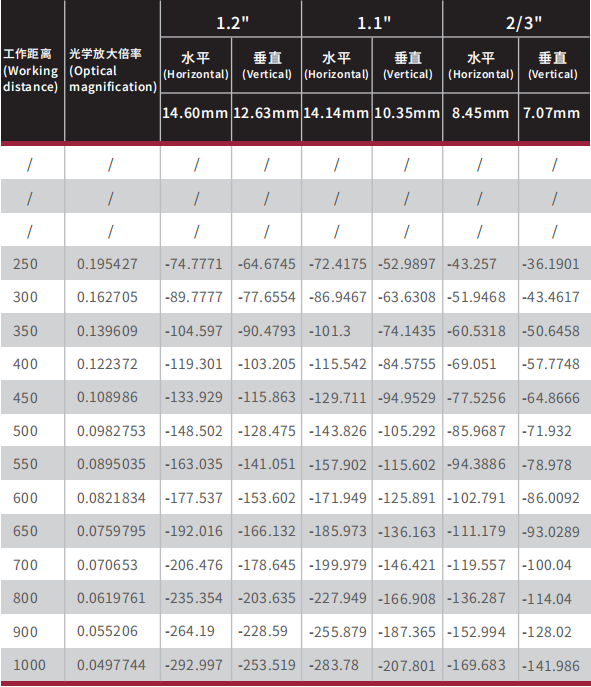

Angle of View (°) 视场角

1.2"

21*16*14

M.O.D 最近物距

0.25m

Relative Illumination 照度

78.5% ( WD=500mm F2.4 )

Distortion 畸变

0.011% ( TV ) ; 0.055% (Optical )

B.F.L 光学后焦

20.64mm , WD=1000mm

CRA 光线夹角

6.94°

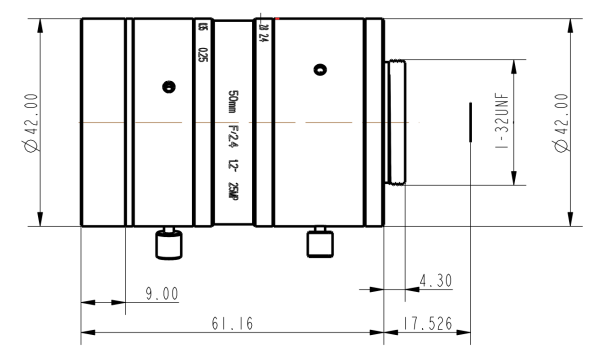

Size 尺寸

Φ42*61.16mm

Filter Size滤镜尺寸

M42.5*P0.5-7H

Mount 接口

C

Weight重量

260g

Marks 备注

AT430~680nm T≥85%;  11G Element

Projector 投影

Center 200lp/mm;Edge Φ16 160lp/mm
