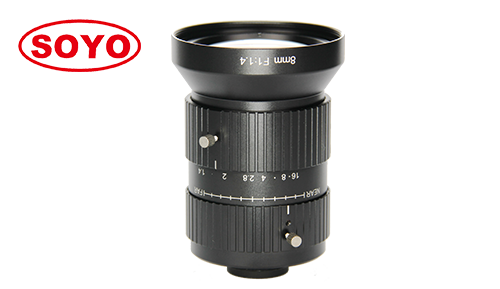

Product name:S11MV0814-12M ( 8mm ) 1.1"
Product description:


8mm 1.1" Megapixel Lenses Machine Vision FA Lens <5% Low Distortion Industrial Automation Recognition Positioning Measurement SMT AOI Color Sort Lentz 4K Camera C/CS China Camera Optics

  • High resolution :       12 megapixel cover all 4K & 1080P
  • Large format:           1.1" size covering 1", 2/3", 1/1.8", 1/2" camera
  • Low distortion :        <5% low distortion use machine vision ITS
  • Application :            Cellphone size test, battery test, cap check, ITS etc.



    Model 型号

    S11MV0814-12M

    Resolution 像素

    12 Megapixel

    Magnification 倍率

    -0.01x ~ 0.064x

    Format 靶面

    1.1"

    Focal Length 焦距

    8mm

    Aperture (Close)光圈

    F1.4 Manual Iris

    Angle of View (°)

    视场角 D*H*V

    1.1"

    98*84*68

    1"

    90*77*62

    2/3"

    69*57.6*45

    M.O.D 最近物距

    0.1m

    Size 尺寸

    Φ60*77.8mm

    Distortion 畸变

    <5%

    Mount 接口

    C

    Weight 重量

    200g
