Current:Home > Products - 3.0 Megapixel CCTV Lenses - SVD7585IR-3M ( 7.5-85mm ) 1/1.8"

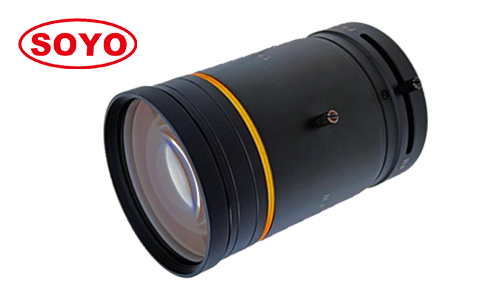

Product name:SVD7585IR-3M ( 7.5-85mm ) 1/1.8"
Product description:

1/1.8" 7.5~85mm 3.0Megapixel Lenses C Mount IR f1.6 Security Surveillance Camera Varifocal CCTV Lens ITS LPR Liscence Plate Recognition Parking Toll Gate Exit/Entry Traffic Road Highway Motion Capture China Optics

* High resolution : 3.0 Megapixel 300万像素

* Large format :    1/1.8" covering 1/2", 1/2.7" 大靶面

* Far distance :     85mm long distance surveillance 远距离监控

* IR Correction :    24hrs day & night vision 全天候监控

* Application :       Parking, motion capture, LPR, ITS 停车、面部识别,车牌识别等


Model 型号

SVD7585IR-3M

Resolution 像素

3 Megapixel

IR Corrected 日夜

IR

Format 靶面

1/1.8"

Focal Length 焦距

7.5-85mm

Aperture (Close) 光圈

F1.6 DC Iris

Angle of View (°) 视场角

1/1.8"(16:9)

W: 67*57*31 | T: 6.3*5.5*3.2

1/1.8"(4:3)

W: 67*52*39 | T: 6.3*5*3.8

Distortion 畸变

-16.92% ~ -2.36%

M.F.L 机械后焦

8.23-9.36mm

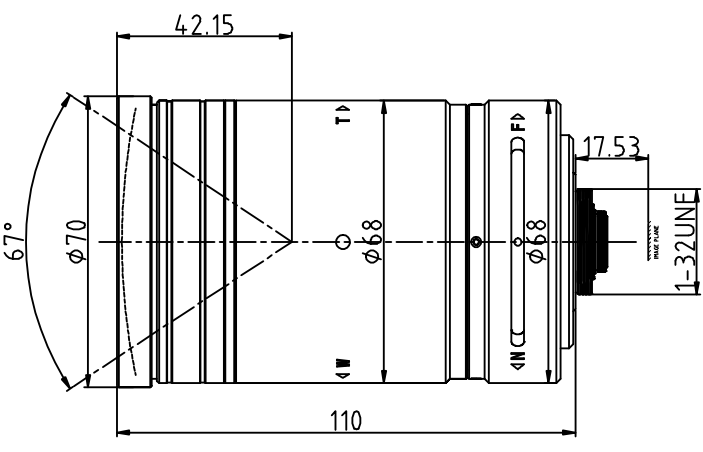

Size 尺寸

Φ70*110mm

T.T.L 光学总长

126.08mm

Mount 接口

C

Weigh 重量

210g

Marks 备注

-20~+80°
