Current:Home > Products - 2/3" 8.0 Megapixel Lens - SMV1628G-6M ( 16mm ) 2/3"

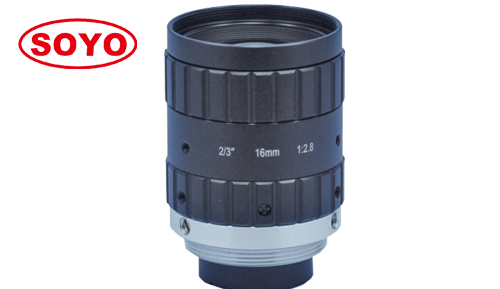

Product name:SMV1628G-6M ( 16mm ) 2/3"
Product description:


16mm 2/3" 8Megapixel Machine Vision FA Camera Lenses 3.45μm F2.8 TV Distortion -0.41% AI 3D Positioning Industrial Recognition 4K C Mount Optics 可用于1000万像素相机

  • High resolution :       8megapixel can used at 10Megapixel camera
  • Large format:           2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Low distortion :        -0.41% low distortion
  • Compact size :          Very compact small size match all area applications.
  • Application :             Positioning, Inspection for medical, life science, SMT, AOI.

Model 型号

SMV1628G-8M

Format 靶面

2/3 (Φ11mm)

Resolution 像素

8.0 Megapixel

Focal Length 焦距

16mm

Aperture (Close) 光圈

F2.8 Manual iris

Field of View (°) 视场

2/3"

152*121*91mm |  38*31*23°

1/2

110*88*66mm |  28*23*17°

1/3

83*66*50mm |  21*17*13°

M.O.D最近物距

20mm

Distortion TV畸变

-0.41%

Filter Size 滤镜尺寸

M28.5*0.5mm

Magnification 倍率

-0.073X @200mm WD

T.T.L 光学总长

52.3mm

B.F.L 光学后焦

8.97mm

CRA 主光线夹角

5.8°

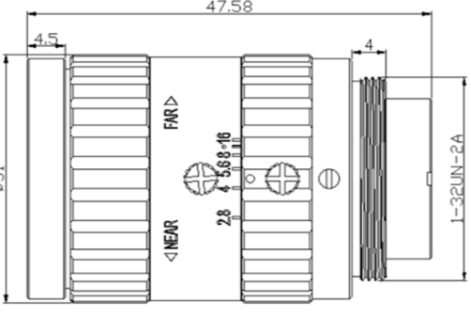

Dimension 尺寸

Φ31*38.5mm

Mount 接口

C

Weight 重量

67g

Marks 备注

-10℃~+50
