Current:Home > Products - 2/3" 8.0 Megapixel Lens - SMV1228G-6M ( 12mm ) 2/3"

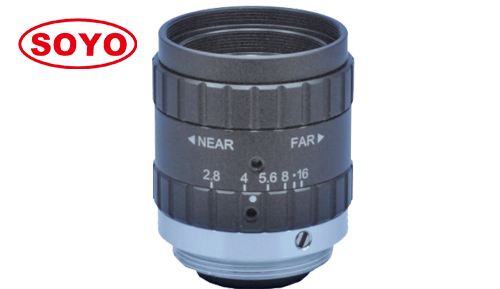

Product name:SMV1228G-6M ( 12mm ) 2/3"
Product description:


12mm 2/3" 8Megapixel Machine Vision FA Camera Lenses 3.45μm F2.8 TV Distortion -0.037% AI 3D Positioning Industrial Recognition 4K C Mount Optics

  • High resolution :       8megapixel can used at 10Megapixel camera
  • Large format:           2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Low distortion :        -0.037% low distortion
  • Compact size :          Very compact small size match all area applications.
  • Application :             Positioning, Inspection for medical, life science, SMT, AOI.

Model 型号

SMV1228G-8M

Format 靶面

2/3 (Φ11mm)

Resolution 像素

8.0 Megapixel

Focal Length 焦距

12mm

Aperture (Close) 光圈

F2.8 Manual iris

Field of View (°) 视场

2/3"

110*87.5*65.2mm |  50*41*31°

1/2

79.4*63.2*47.2mm |  37*30*23°

1/3

59.2*47.2*35.4mm |  28*23*17°

M.O.D最近物距

10mm

Distortion TV畸变

-0.037%

Filter Size 滤镜尺寸

M30.5*0.5mm

Magnification 倍率

-0.10214X @100mm WD

T.T.L 光学总长

56.95mm

B.F.L 光学后焦

9.85mm

CRA 主光线夹角

6.5°

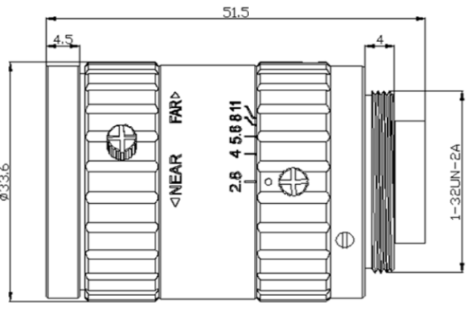

Dimension 尺寸

Φ33.6*43mm

Mount 接口

C

Weight 重量

77g

Marks 备注

-10℃~+50
