Current:Home > Products - Pin-Hole Lenses - SPH0420KM-M ( 4-20mm ) 1/2.7" Anti-hot

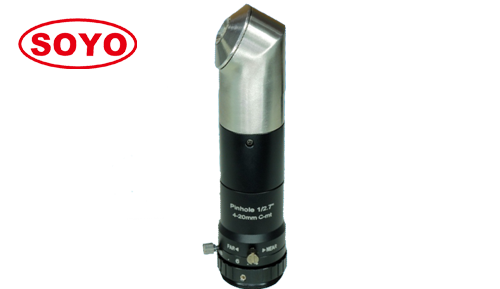

Product name:SPH0420KM-M ( 4-20mm ) 1/2.7" Anti-hot
Product description:


Anti-high-temperature 120° Degree 4-20mm 1/2.7" 2.0 Megapixel Pin-hole Lens At High Tempreature Metal Smelting Refinery Camera Lenses C/CS Mount
抗高温冶金专用镜头120度角

  • High resolution:      2.0 megapixel covering 1080P, 720P
  • Wide focal length:   4-20mm varifocal length makes it vast occasions.
  • Large format:          1/2.7" can cover 1/2.7", 1/3", 1/4" camera.
  • Structure :               11G elements.
  • Application:           Metal smelting .




Model 型号

SPH0420KM-2M

Resolution 像素

2.0 Megapixel

IR Correction 红外

-

Format 靶面

1/2.7"

Focal Length 焦距

4-20mm

Aperture (Close) 光圈

F4.0 Manual iris

Angle of View

1/2.7"

W: 89*66.4  |  T: 18*13.5

视场角 H*V

1/3"

-

1/4"

-

M.O.D 最近物距

0.4m

B.F.L 光学后焦

12.53mm

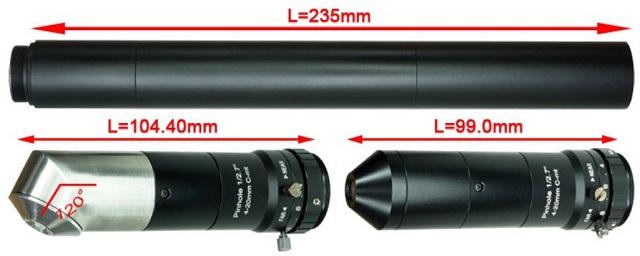

Size 尺寸

Φ30*103.5mm+235mm*N

Construction 结构

11G+5G*N Element

Mount 接口

CS

Weight 重量

110g+196g*N
