Current:Home > Products - Fisheye Lenses - SFY1520IR-5M (1.5mm) 1/2.5"

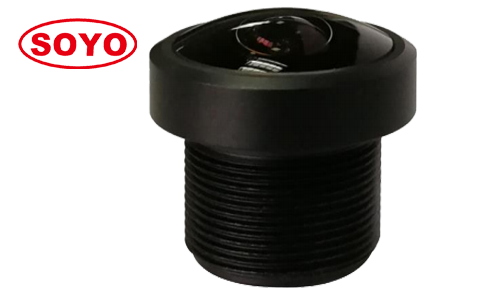

Product name:SFY1520IR-5M (1.5mm) 1/2.5"
Product description:


1.5 mm 1/2.5" 5MP Megapixel Fisheye CCTV Lens 360° Degree Panoramic Camera Optics Crossing Security Surveillance Optical Lenses M12 S-mount Bullet Dome Camera Optics Lentz

  • High resolution:       5 megapixel covering 1080P
  • Focal length:           1.5mm support wide FOV.
  • Large format:          1/2.5" can cover 1/2.7", 1/3".
  • Wide FOV :             210 degree surveillance for D.V.H.
  • Application:          Observatory, street, office, smart home etc


Model 型号

SFY1520IR-5M

Resolution 像素

5 Megapixel

Format 靶面

1/2.5" Φ4.1

Focal Length 焦距

1.5mm

IR day & night 紅外

IR

Aperture 光圈

F2.0  Fixed iris

Angle of View (°) 视场角

1/2.5"

210*210*210

M.O.D 最近物距

0.3m

F-theta Distortion 畸变

-6.1%

CRA 主光线夹角

<9.93°

B.F.L 光学后焦

3.31mm ( in air)

M.F.L 机械后焦

3.1mm ( in air )

T.T.L 光学总长

14.68mm

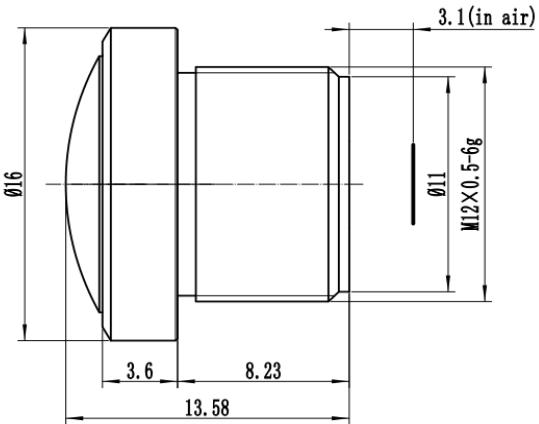

Dimension 尺寸

Φ16*13.58mm

Mount 接口

M12

Weight 重量

4.5g
