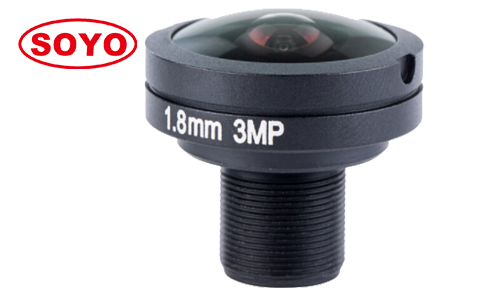

Product name:SFY2818FIR-3M ( 1.8mm ) 1/2.7"
Product description:


1.8 mm 1/2.7" 3.0 Megapixel Fisheye Lenses Φ5.3 Panoramic 360° CCTV Camear Lens ITS Crossing Security Surveillance S-mount M12 China Objective Lentz 300万像素高清鱼眼360度安防监控、交通用镜头

  • High resolution:       3.0 megapixel covering 4K,1080P
  • Focal length:           1.8mm support wide FOV.
  • Large format:          1/2.7" and support 1/1.8"
  • Wide FOV :             185° super wide D.V.H.
  • Application:             Observatory, street, office, smart home etc


Model 型号

SFY1828FIR-3M

Resolution 像素

3 Megapixel

IR Corrected 日夜

IR

Image height 像高

Φ5.3

Format 靶面

1/2.7"

Focal Length 焦距

1.8mm

Aperture 光圈

F2.8  Fixed Iris

Angle of View (°) 视场角

1/1.8"

185*185*185

1/2.7"

185*185*148

1/3.6"

185*148*111

M.O.D 最近物距

0.3m

B.F.L 光学后焦

4.3mm

T.T.L 光学总长

27.72mm

Distortion 畸变

-100%

Size 尺寸

Φ26*21.7mm

Mount 接口

M12

Weight 重量

13g

Marks 备注

-20°C~+60°C
