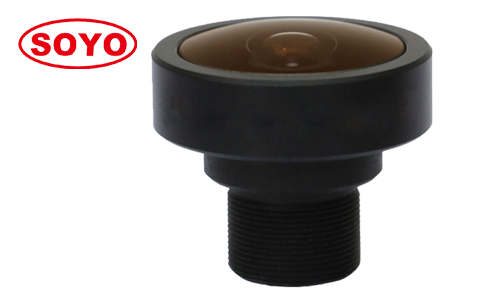

Product name:SFY1720IRF-8M ( 1.7mm ) 1/1.8"
Product description:


1.7 mm 1/1.8" 8 Megapixel Fisheye Lenses Panoramic 360° CCTV Camera Lens IR For Crossing Security Surveillance Office Intercom Door LPR Parking S/M12 Mount

  • High resolution:       8 megapixel covering 4K,1080P
  • Focal length:           1.7mm support wide FOV.
  • Large format:          1/1.8" can cover  1/2", 1/2.3".
  • Wide FOV :             188 degree surveillance for D.V.H.
  • Application:           Observatory, street, parking, LPR,office, smart home etc

Model 型号

SFY1720IRF-8M

Resolution 像素

8 Megapixel

Format (inch) 靶面

1/1.8" Φ4.82@180°

Focal Length 焦距

1.7mm

IR day & night 紅外

IR

Aperture (close) 光圈

F2.0 Fixed iris

Angle of View (°) 视场角

1/1.8"

185*185*185

1/2"

185*185*180

1/2.3" (4:3)

185*185*174

M.O.D 最近物距

0.15m

Distortion 畸变

-97.5%

B.F.L 光学后焦

5.38mm ( in air)

M.F.L 机械后焦

4.86mm ( in air )

T.T.L 光学总长

30.7mm

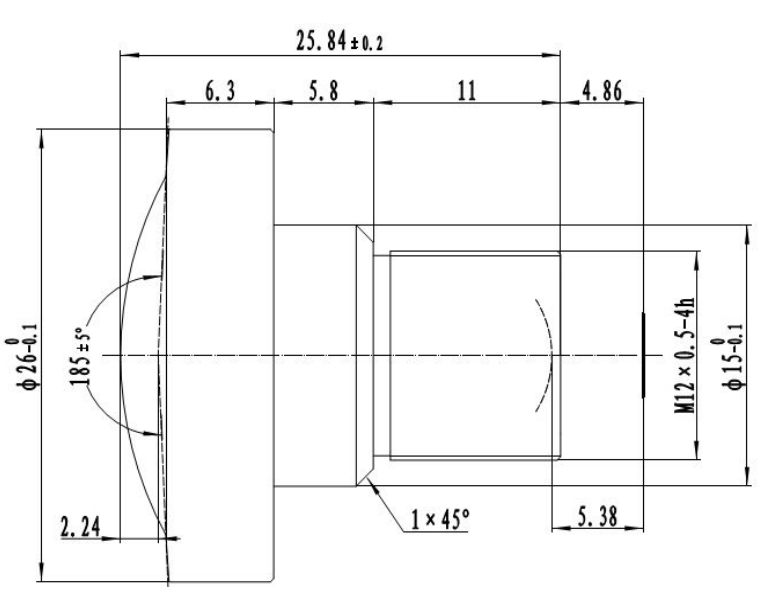

Dimension 尺寸

Φ26*25.8mm

Mount 接口

M12

Weight 重量

20g

Marks 备注

-30°~ +80°
