Current:Home > Products - Fisheye Lenses - SFY1522IR2-12M ( 1.5mm ) 1/2.3"

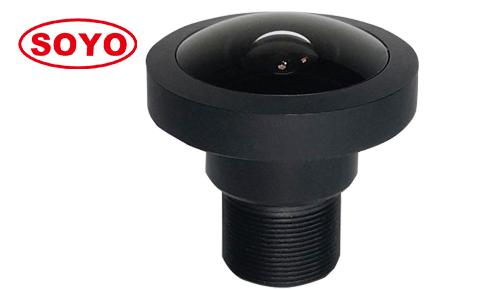

Product name:SFY1522IR2-12M ( 1.5mm ) 1/2.3"
Product description:


1.5 mm 1/2.3" 12.0 Megapixel Fisheye Lenses Φ4.3 Camera LPR Crossing Security Surveillance 360 Panoramic Intercom China CCTV Lens Optics S-Mount Board

  • High resolution:       12 megapixel covering 4K,1080P
  • Focal length:           1.5mm support wide FOV.
  • Large format:          1/2.3" can cover 1/2.5“, 1/2.8", 1/3".
  • Wide FOV :             180 degree surveillance for D.V.H.
  • Application:           Observatory, street, office, LPR, smart home etc

Model 型号

SFY1522IR-12M

Resolution 像素

12 Megapixel

Format 靶面

1/2.3" Φ4.3@180°

Focal Length 焦距

1.5mm

IR day & night 紅外

IR

Aperture 光圈

F2.2 Fixed iris

Angle of View (°) 视场角

1/2.3"

180*180*180

1/2.5"

180*180*149

1/2.8"

180*180*128

M.O.D 最近物距

0.3m

Distortion 畸变

-98%

CRA 主光线夹角

<13.53%

B.F.L 光学后焦

4.51mm ( in air)

M.F.L 机械后焦

3.88mm ( in air )

T.T.L 光学总长

27.11mm

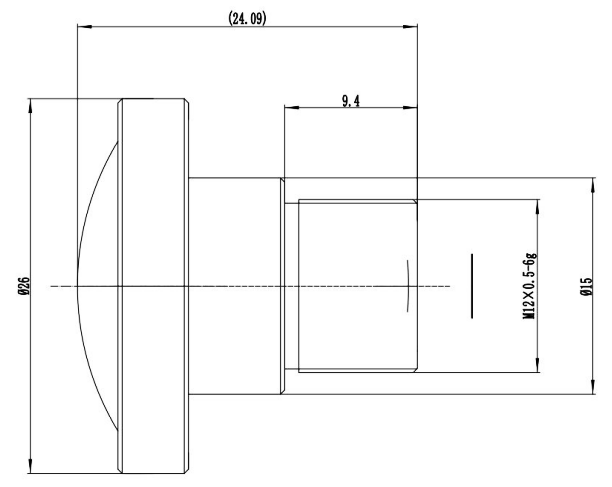

Dimension 尺寸

Φ26*24.09mm

Mount 接口

M12

Weight 重量

20g
