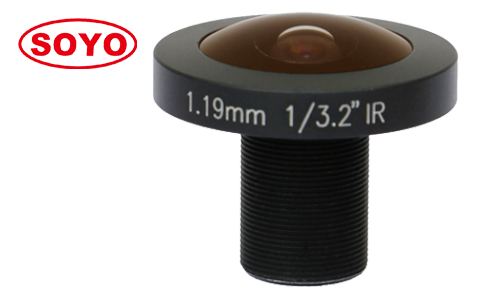

Product name:SFY11925XIR-8M ( 1.19mm ) 1/3.2"
Product description:


1.19 mm 1/3.2" 8.0 Megapixel Fisheye Lenses Φ3.6 Panoramic 360° CCTV Camear Lens Street Crossing Security Surveillance S-mount M12 IR Day & Night

  • High resolution:       8.0 megapixel covering 4K,1080P
  • Focal length:           1.19mm support wide FOV.
  • Large format:          1/3.2"
  • Wide FOV :             185° super wide D.V.H.
  • Application:           Observatory, street, office, smart home etc

Model 型号

SFY11925XIR-8M

Resolution 像素

8 Megapixel

Format 靶面

1/3.2"Φ3.6

Focal Length 焦距

1.19mm

Aperture 光圈

F2.5 Fixed iris

Angle of View (°) 视场角

1/3.2"

185*185*185

M.O.D 最近物距

0.1m

Distortion 畸变

-113%

B.F.L 光学后焦

4.2mm ( in air)

T.T.L 光学总长

27.8mm

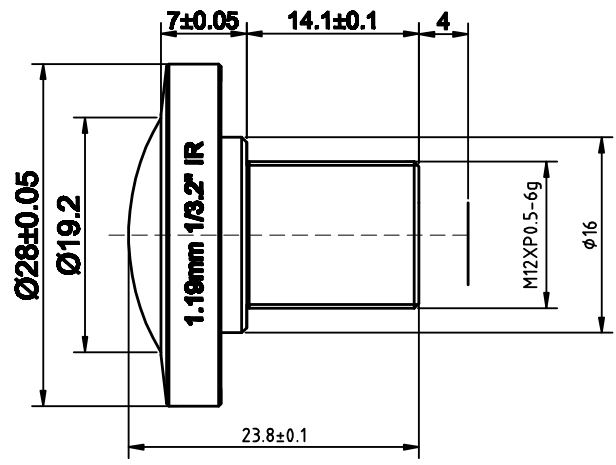

Dimension 尺寸

Φ28*23.8mm

Mount 接口

M12

Weight 重量

15g

Marks 备注

-20°C ~ +10C
