Current:Home > Products - Fisheye Lenses - SFY17722X-8M ( 1.17mm ) 1/3.2"

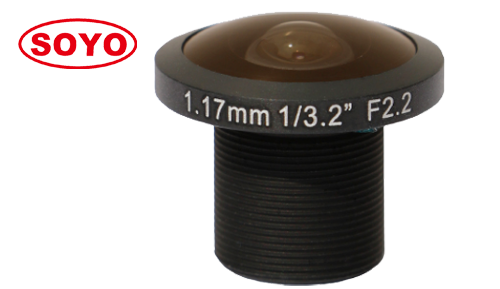

Product name:SFY17722X-8M ( 1.17mm ) 1/3.2"
Product description:


1.17 mm 1/3.2" 8.0 Megapixel Fisheye Lenses Φ3.2 Panoramic 360° CCTV Camear Lens ITS Crossing Security Surveillance S-mount M12

  • High resolution:       8.0 megapixel covering 4K,1080P
  • Focal length:           1.17mm support wide FOV.
  • Large format:          1/3.2"
  • Wide FOV :             22super wide D.V.H.
  • Application:          Observatory, street, office, smart home etc

Model 型号

SFY11722X-8M

Resolution 像素

8 Megapixel

Format 靶面

1/3.2"Φ3.2

Focal Length 焦距

1.17mm

Aperture 光圈

F2.2 Fixed iris

Angle of View (°) 视场角

1/3.2"

220*220*220

M.O.D 最近物距

0.1m

Distortion 畸变

-147.6%

B.F.L 光学后焦

3.72mm ( in air)

T.T.L 光学总长

20.98mm

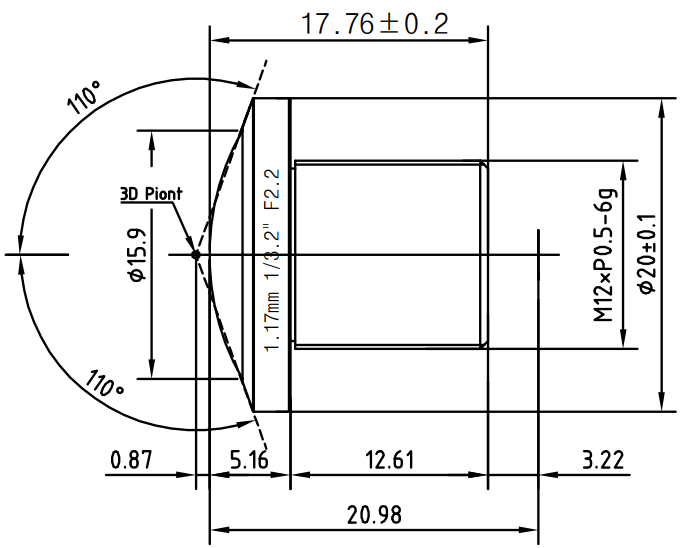

Dimension 尺寸

Φ20*17.76mm

Mount 接口

M12

Weight 重量

10g

Marks 备注

-20°C ~ +80°C
