Current:Home > Products - Fisheye Lenses - Water-proof IP67-12M (1.85mm) 1/1.8"

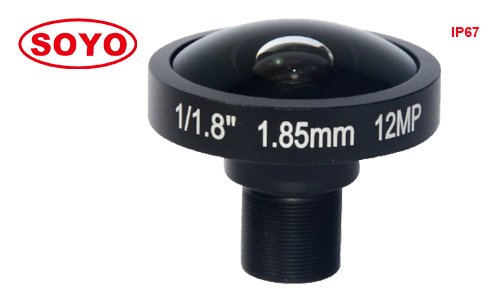

Product name:Water-proof IP67-12M (1.85mm) 1/1.8"
Product description:


1.85 mm 1/1.8" 12MP Megapixel Fisheye CCTV Lens Water-proof IP67 Camera Crossing Security Surveillance Lenses 360 Panoramic Intercom Door

  • High resolution:       12 megapixel covering 4K,1080P
  • Focal length:           1.85mm support wide FOV.
  • Large format:          1/1.8" can cover 1/2“, 1/2.8", 1/3".
  • Wide FOV :             185 degree surveillance for D.V.H.
  • Water-proof:           Water-proof IP67
  • Application:           Observatory, street, office, smart home etc

Model 型号

SFY18520IR.IP67-12M

Resolution 像素

12 Megapixel

Format 靶面

1/1.8" (Max Φ5.6)

Focal Length 焦距

1.85mm

B.F.L 光学后焦

6.25mm

Aperture 光圈

F2.0 Fixed iris

Angle of View (°)

视场角 D*H*V

1/1.8"

185*185*185

1/2"

185*185*155

1/2.5"

185*185*127

M.O.D 最近物距

0.15m

Distortion 畸变

-97%

Filter size

/

Size 尺寸

Φ34*29.27mm

T.T.L 光学总长

35.05mm

Mount 接口

M12

Weight 重量

31g

Marks 备注

Water-proof IP67
