Current:Home > Products - Fisheye Lenses - Water-proof IP67-8M ( 1.13mm ) 1/2.7"

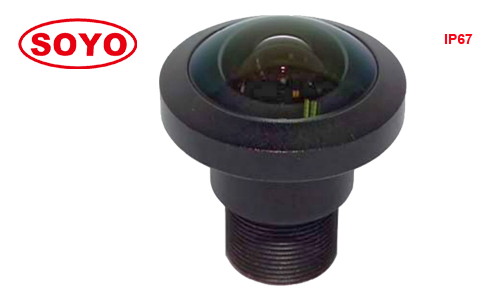

Product name:Water-proof IP67-8M ( 1.13mm ) 1/2.7"
Product description:


1.13mm 1/2.7" 8MP Megapixel Fisheye CCTV Lens Camera Crossing Security Surveillance Lenses 360 Panoramic Intercom Door Water-proof IP67

  • High resolution:       8 megapixel covering 4K,1080P
  • Focal length:           1.13mm support wide FOV.
  • Large format:          1/2.7" 1/3".
  • Wide FOV :             195 degree surveillance for D.V.H.
  • Water-proof:           Water-proof IP67
  • Application:           Observatory, street, office, smart home etc


Model 型号

SFY11320IR.IP67-8M

Resolution 像素

8 Megapixel

IR Corrected 日夜

IR

Image height 像高

Φ3.6

Format 靶面

1/2.7"

Focal Length 焦距

1.13mm

Aperture 光圈

F2.0 Fixed Iris

Angle of View (°) DxHxV

视场角 对角x水平x垂直

1/2.7"

195*195*195

1/3"

195*195*195

1/3.2"

195*195*195

M.O.D 最近物距

0.15m

C.R.A 主光线夹角

<7.7°

B.F.L 光学后焦

5.32m

T.T.L 光学总长

27.72mm

Distortion 畸变

-97.51%

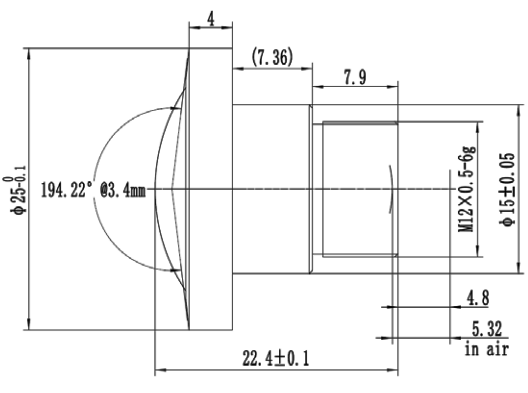

Size 尺寸

Φ25*22.4mm

Mount 接口

M12

Weight 重量

15g

Water-proof 防水等级

IP67
