Current:Home > Products - Fisheye Lenses - Water-proof IP67-5M ( 1.5mm ) 1/2"

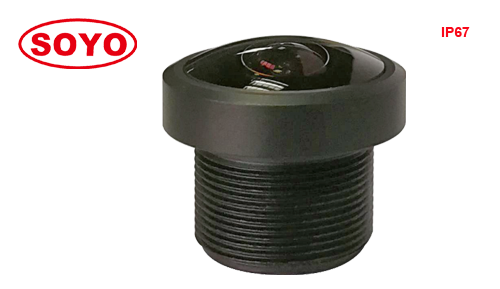

Product name:Water-proof IP67-5M ( 1.5mm ) 1/2"
Product description:


1.5 mm 1/2"
Φ4.2 5MP Megapixel Fisheye IP67 Water-proof Lenses CCTV Camera Lens Crossing Security Surveillance Lenses 360 Panoramic Intercom Door

  • High resolution:       5 megapixel covering 1080P
  • Focal length:           1.5mm support wide FOV.
  • Large format:          1/2" can be used at 1/2“
  • Large FOV : 185°~210° degree wide
  • ICR Options :           ICR holder & single lens optional
  • Application:           Observatory, street, office, building, smart home etc

Holder Type : SFY1520IR.IP67.H-5M

Model 型号

SFY1520IR.IP67-5M

Resolution 像素

5 Megapixel

IR Corrected 日夜

IR

Image height 像高

Φ4.2

Format 靶面

1/2"

Focal Length 焦距

1.5mm

Aperture 光圈

F2.0 Fixed Iris

Angle of View (°) DxHxV

对角x水平x垂直

1/2"

210*210*210

1/2.5"

210*210*210

M.O.D 最近物距

0.3m

C.R.A 主光线夹角

<9.93°

B.F.L 光学后焦

3.31mm

T.T.L 光学总长

16.68mm

Distortion 畸变

-6.1%

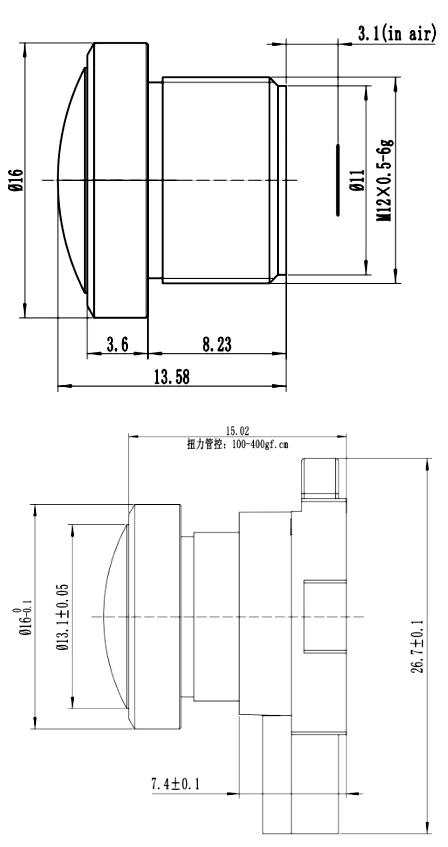

Size 尺寸

Φ16*13.58

Mount 接口

M12

Weigh重量

10g ( Default No holder )

Water-proof 防水等级

IP67
