Current:Home > Products - Fisheye Lenses - SFY15520IR-12M ( 1.55mm ) 1/2.3"

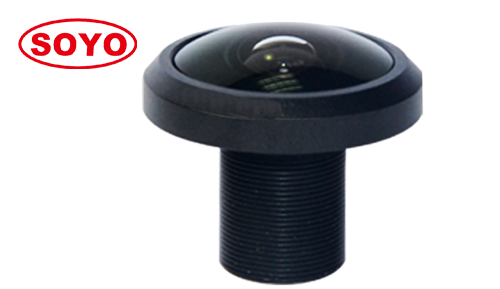

Product name:SFY15520IR-12M ( 1.55mm ) 1/2.3"
Product description:


1.55 mm 1/2.3" 12.0 Megapixel Fisheye Lenses Φ4.7 Camera ITS Crossing Security Surveillance 360 Panoramic Intercom Door CCTV Lens

  • High resolution:       12 megapixel covering 4K,1080P
  • Focal length:           1.55mm support wide FOV.
  • Large format:          1/2.3" can cover 1/2.5“, 1/2.8", 1/3".
  • Wide FOV :             195 degree surveillance for D.V.H.
  • Illumination :           50% @ 180°
  • Application:           Observatory, street, office, smart home etc

Model 型号

SFY15520IR-12M

Resolution 像素

12 Megapixel

Format 靶面

1/2.3" Φ4.7@195°

Focal Length 焦距

1.55mm

IR day & night 紅外

IR

Aperture 光圈

F2.0  Fixed iris

Angle of View (°) 视场角

1/2.3"

195*195*195

1/2.5"

195*195*172

1/2.7"

195*195*157

Relative illumination 照度

/

M.O.D 最近物距

0.15m

Distortion 畸变

-98%

CRA 主光线夹角

<11.6%

B.F.L 光学后焦

4.63mm ( in air)

M.F.L 机械后焦

3.95mm ( in air )

Filter size 滤镜尺寸

/

T.T.L 光学总长

27.11mm

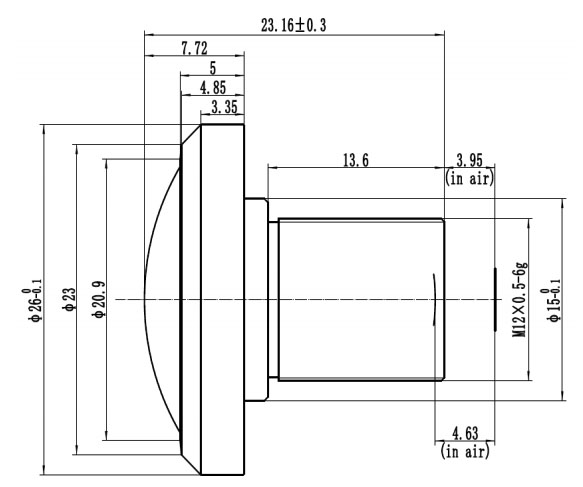

Dimension 尺寸

Φ26*23.16mm

Mount 接口

M12

Weight 重量

8g

Marks 备注

8G Element ; -30°~ +70°
