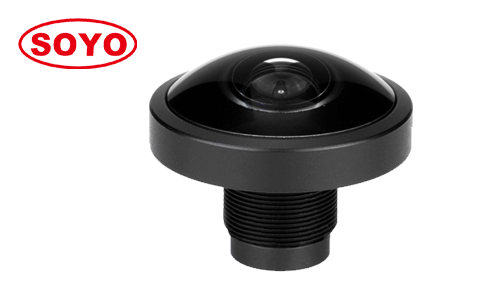

Product name：SFY0920C-8M ( 0.9mm ) 1/3.2"
|
|
Product description：
|
0.9mm 1/3.2" 8.0 Megapixel Fisheye Lenses Φ3.4 Panoramic 360° CCTV Camera Lens ITS Crossing Security Surveillance Intercom Door S-mount M12 IR
-
High resolution: 8.0 megapixel covering 4K,1080P
-
Focal length: 0.9mm support wide FOV.
-
Small format: 1/3.2"
-
Big aperture : F2.0 support vast occassions.
-
Application: Observatory, street, office, intercom, surveilance etc .
|
Model 型号
|
SFY0920C-8M
|
|
Resolution 像素
|
8.0 Megapixel
|
|
Format 靶面
|
1/3.2" (Max image circle Φ3.4)
|
|
Focal Length 焦距
|
0.9mm
|
|
IR 红外
|
/
|
|
Aperture 光圈
|
F2.0 Fixed iris
|
|
Angle of View (°)
视场角
|
1/2"
|
/
|
|
1/2.7"
|
/
|
|
1/3.2"
|
230*230*230
|
|
M.O.D 最近物距
|
0.05m
|
|
Distortion 畸变
|
<3%
|
|
Size 尺寸
|
Φ27*18.97mm
|
|
Filter size
|
/
|
|
CRA 主光线夹角
|
16°
|
|
Relative illumination 相对照度
|
60%
|
|
T.T.L 光学总长
|
23.6mm
|
|
Mount 接口
|
M12*0.5
|
|
Weight 重量
|
15g
|
|
Marks 备注
|
Element 7G
|
|
|
