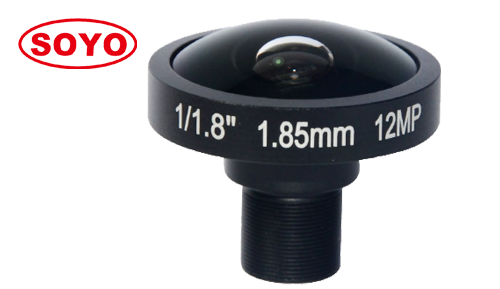

1.85 mm 1/1.8" 12.0 Megapixel Fisheye CCTV Lens For Camera Sport ITS Crossing Security Surveillance Lenses 360 Panoramic Intercom Wide Angle China Lentz Optics M12 S-mount ( Water-proof IP67 Optional )
-
High resolution: 12 megapixel covering 4K,1080P
-
Focal length: 1.85mm support wide FOV.
-
Large format: 1/1.8" can cover 1/2“, 1/2.8", 1/3".
-
Wide FOV : 185 degree surveillance for D.V.H.
-
Water-proof: Water-proof IP67 is optional ( Default is not water-proof )
-
Application: Observatory, street, office, smart home etc
|
Model 型号
|
SFY18520IR-12M
|
|
Resolution 像素
|
12 Megapixel
|
|
Format 靶面
|
1/1.8" ( Max Φ5.6 )
|
|
Focal Length 焦距
|
1.85mm
|
|
B.F.L 光学后焦
|
6.25mm
|
|
Aperture 光圈
|
F2.0 Fixed iris
|
|
Angle of View (°)
视场角 D*H*V
|
1/1.8"
|
185*185*185
|
|
1/2"
|
185*185*158
|
|
1/2.3"
|
185*185*151
|
|
M.O.D 最近物距
|
0.15m
|
|
Distortion 畸变
|
-97%
|
|
M.B.L 机械后焦
|
/
|
|
Size 尺寸
|
Φ34*29.27mm
|
|
T.T.L 光学总长
|
35.05mm
|
|
Mount 接口
|
M12
|
|
Weight 重量
|
31g
|
|
Marks 备注
|
Image circle max Φ5.6
|
|
