Current:Home > Products - Mono-focal Lenses - S1FC17044IR-10M ( 170mm ) 1"

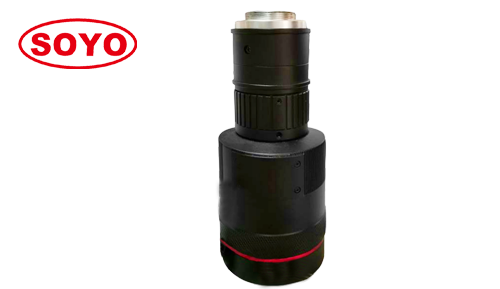

Product name:S1FC17044IR-10M ( 170mm ) 1"
Product description:


170mm 1" 10 Megapixel CCTV Lenses Security Surveillance Camera Optics Fixed Mono-focal C/CS Long Distance ITS Parking Traffic Recgonition Auto Iris Long Distance Imaging China Objective Lentz 远距离监控、交通、识别等用途高清1000万像素1英寸镜头

  • High resolution:       10 megapixel can cover 4K,1080P
  • Long distance:         170mm far distance.
  • IR Correction:          24h day & night vision
  • Large format:          1" can cover all 1", 2/3",1/1.8",1/2"camera
  • Application:           ITS, Building, highway, Railway, River outside

Model 型号

S1FCD17044-10M

Resolution 像素

10 Megapixel

IR Corrected 日夜

IR

Format 靶面

1"

Focal Length 焦距

170mm

Apertur光圈

F4.4 DC Iris

Angle of View (°) DxHxV

视场角

1"

5.4*4.32*3.25

2/3"

3.72*2.97*2.23

1/2"

/

M.O.D 最近物距

5m

Distortion 畸变

0.27% @ max image circle Φ16.6

B.F.L 光学后焦

25.82mm

M.F.L 机械后焦

13mm

T.T.L 光学总长

65mm

CRA (°) 主光线夹角

<4.03°

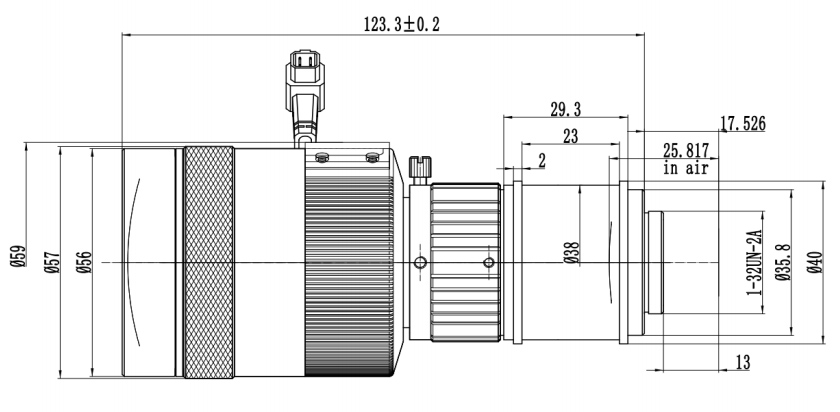

Dimension 尺寸

Φ59*123.3mm

Screw Filter 螺纹

/

Illumination 相对照度

/

Mount 接口

C

Weight 重量

493g

Marks 备注

Element 6G;  -30°~+60°
