Current:Home > Products - Mono-focal Lenses - SFC0820IR-5M ( 8mm ) 1/2.5"

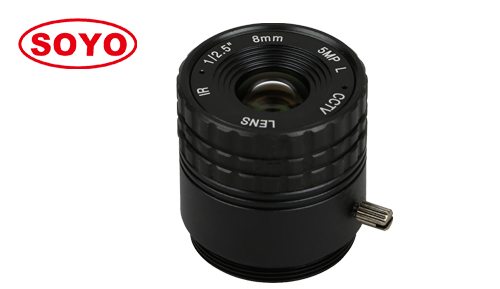

Product name:SFC0820IR-5M ( 8mm ) 1/2.5"
Product description:


8mm 1/2.5" 5.0 Megapixel CCTV Lenses For Bank School Room Use Fixed Focal Length CS Lens Waveband 760~850nm


  • High resolution:       5.0 megapixel can cover 3MP,1080P
  • IR Correction:          24h day & night vision, 760~850nm waveband.
  • Small size :              Very small size support most box camera size.
  • Application:            Bank, office, room, corridor, bldg., garden.

Model 型号

SFC0820IR-5M

Resolution 像素

5.0 Megapixel

Format 靶面

1/2.5"

Focal Length 焦距

8.0 mm

IR Correction 红外

IR

Aperture  (Close) 光圈

F2.0 Fixed iris

Angle of View (°)

视场角 D*H*V

1/2.5"

59*45*33

1/2.7"

53*42*30.3

1/3"

47*37*27

M.O.D 最近物距

0.3m

Distortion 畸变

Max - 18.5%

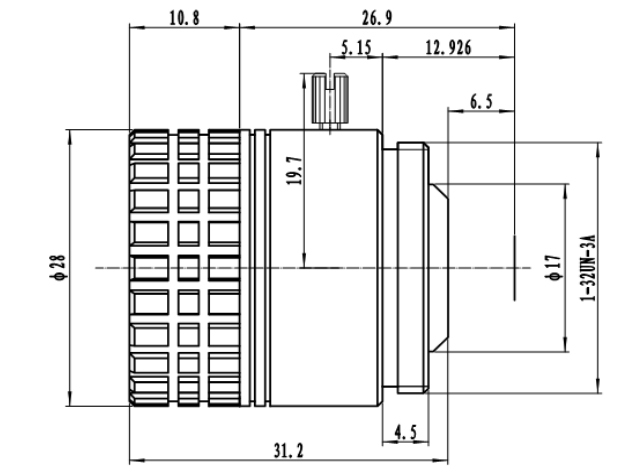

Size 尺寸

Φ28*31.2mm

BFL 光学后焦

7.7mm

MFL 机械后焦

6.5mm

T.T.L 光学总长

37.7mm

Mount 接口

CS

Weight 重量

40g

Marks 备注
