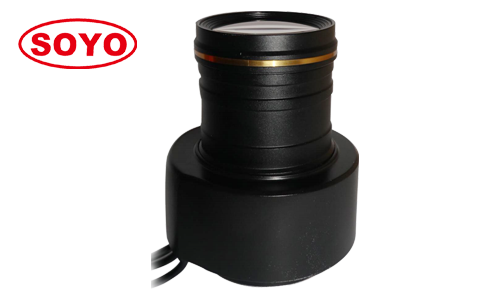

New P-iris motorized zoom lens 10-40mm 12MP online
author:admin  time:2021-3-11  Number of click:1950

Look, if you have camera 1/1.8" 4K to 6K needs high resolution and high-end cctv lens, megapixel lenses, motorized zoom lenses, please find below what you need, which save the cost for you.



Model 型号

SMZ1040PIR-12M

Resolution 像素

12 Megapixel

IR Corrected 日夜

IR

Format (inch) 靶面

1/1.8"

Focal Length (mm) 焦距

10-40mm

Aperture (Close/360) 光圈

F1.6 P-iris ( DC optional )

Angle of View (°) 视场角DxHxV

1/1.7"

44*36*24

M.O.D (m最近物距

1m

Distortion 畸变

-7% ~ -2.3%

C.R.A 主光线夹角

<2°@Wide / <3.7°@Tele

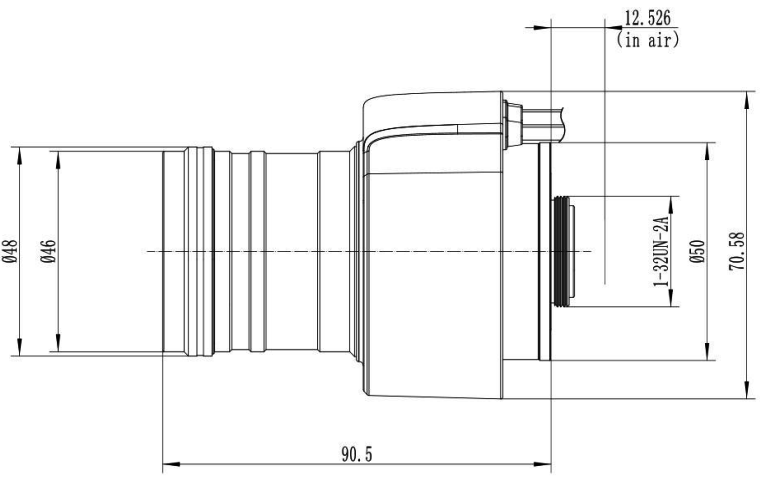

Dimension 尺寸

Φ48*90.5mm

B.F.L 光学后焦

10.19~13.15mm

M.F.L 机械后焦

8.33mm

Mount 接口

CS

Weight (g) 重量

450g

Marks 备注

-30°~+70°

Character 特性

Coating 400~900nm
