150 Megapixel Lens 3.5um High Resolution
author:admin  time:2020-10-21  Number of click:1521

Are you sourcing a high resolution lenses ?


Are you looking for a good quality camera lens ?


Are you headache for current situlation lacking good supplier ?


Are you browsing a long time to find a suitable satisfied manufacturer of optical lenses ?


STOP ! Come on , tell me what you need, i have majority of optical lenses that the market has, we sell to Hikvision, Samsung, Hongda, LG etc., what do you think about quality ?


Contact us now without hesitate via :


Wechat/skype :  soyocctv


E-mail:  sales@soyocctv.com

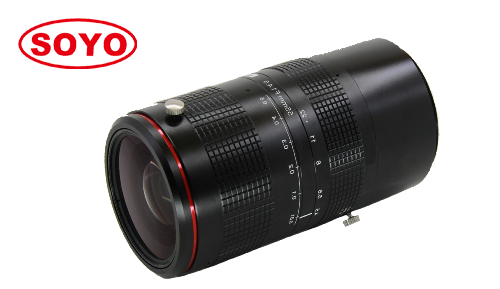

150 Megapixel 3.5μm 55mm Φ67 0.01% Low Distortion Machine Vision Factory Automation Lenses Measurement Camera Optical Lens

  • High resolution :       3.5μm 150 Megapixel
  • Large format:           Φ67
  • Magnification :          0.5x ~ 0.01x
  • Low distortion :         Low distortion 0.01% for measurement and vision
  • Application :             Automation, machine vision, medical, life science, measurement.




Model 型 号

SLS5515-150M72

Magnification(x)倍率

0.5x

0.4x

0.3x

0.2x

0.1x

0.01x

Working distance 工作距

97.55mm

128.3mm

179.1mm

280.6mm

585.9mm

6074mm

Resolution 分辨率

3.5μm

Distortion 畸变

0.01%

Angle of view ° 视场角

29°

Max image format画幅

φ67

Focal length 焦距

55mm

Aperture 光圈

F4.5~22

Mount 接口

M72*P0.75

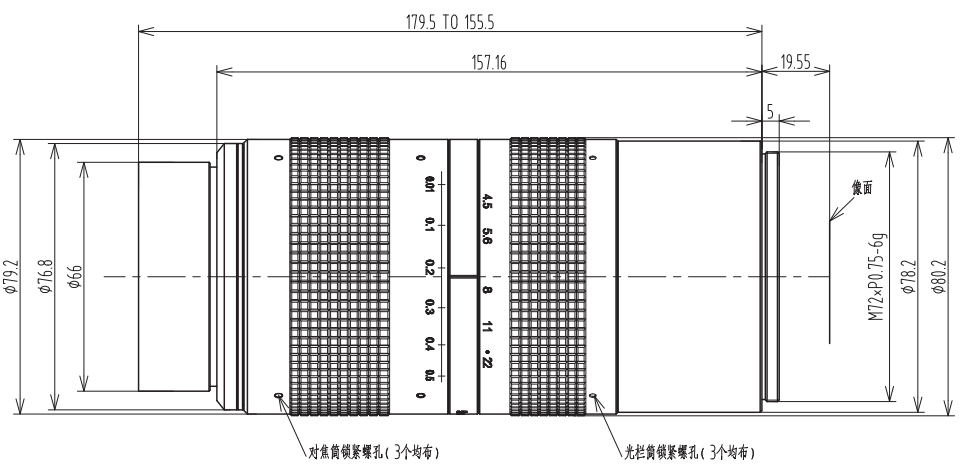

Dimension 尺寸

Φ79.2*69.3mm

Marks 备注
