Current:Home > Products - 2/3" 5.0 Megapixel Lens - SMV0428-5M ( 4mm ) 2/3"

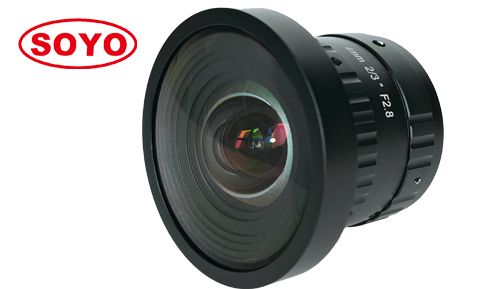

Product name:SMV0404-5M ( 4mm ) 2/3"
Product description:


4mm 2/3" 8Mpixel~6Megapixel Machine Vision FA Camera Lenses 3.45μm F2.8 TV Distortion < 3% AI 3D Positioning Industrial Computer Vision 4K C Mount Optics

  • High resolution :       8Mpixel ~ 6Mpixel megapixel camera
  • Large format:           2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Low distortion :        <3% low distortion
  • Compact size :          Very compact small size match all area applications.
  • Application :             Positioning, Vision inspection, AOI, measurement.

Model 型号

SMV0428-6M

Format 靶面

2/3 (Φ11mm)

Resolution 像素

6.0 Megapixel

Focal Length 焦距

4mm

Aperture (Close) 光圈

F2.8 Manual iris

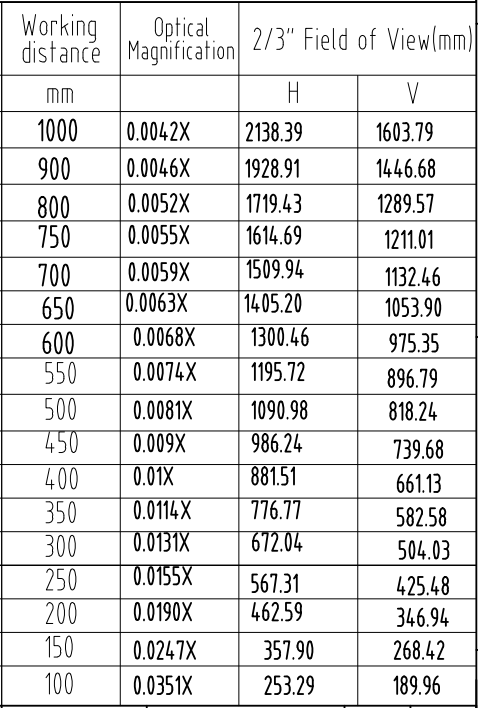

Field of View (°) 视场

2/3"

317*253*190mm |  106*97*80°

1/2

228*182*137mm |  91*78*62°

1/3

-

M.O.D最近物距

60mm

Distortion TV畸变

< 3%

Filter Size 滤镜尺寸

-

Magnification 倍率

0.0351X @100mm WD

T.T.L 光学总长

55.3mm

B.F.L 光学后焦

7.4mm

CRA 主光线夹角

-

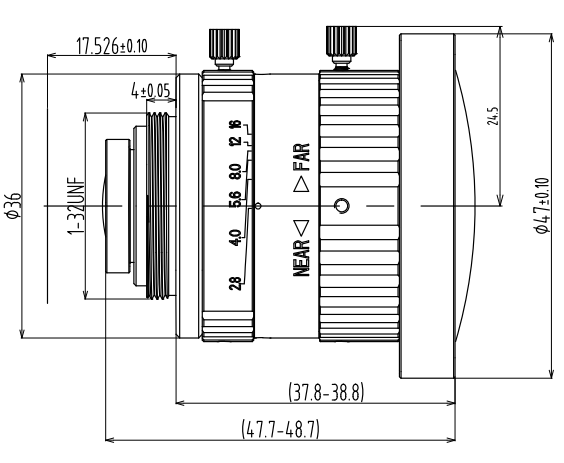

Dimension 尺寸

Φ47*47.7mm

Mount 接口

C

Weight 重量

130g

Marks 备注

-10℃~+50
