Current:Home > Products - F/M58 Large Format Lenses - SMV8003F-29M ( 80mm ) Φ58

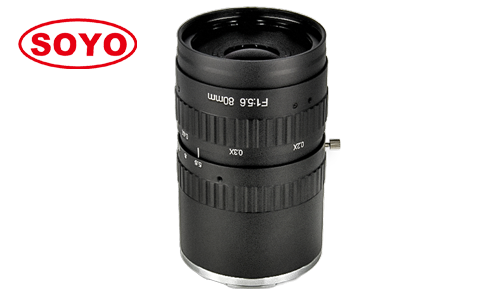

Product name:SMV8003F-29M ( 80mm ) Φ58
Product description:


80mm Φ58 29MP 4K 5μ/7μ Machine Vision FA <0.01% Low Distortion Industrial Recognition Positioning Measurement AI Sort Camera F Mount Megapixel Lenses 线扫4K 2900万像素5μ/7μ工业视觉检测镜头畸变<0.01%接口F大画幅Φ58mm (用于印刷、包装等)


  • High resolution :      29 megapixel cover all 4K & 1080P
  • Mount type :            F mount
  • Low distortion :        <0.01% low distortion use machine vision ITS
  • Magnification:          0.2x~0.4x
  • Application :             Scann, Automation, machine vision, medical, life science.



Model 型号

SMV8003F-29M

Format 靶面

Φ58

Resolution 像素

29Megapixel (up to )

Focal Length 焦距

80mm

Aperture (Close) 光圈

F5.6

Distortion 畸变

<0.01%

Magnification 放大倍率

0.2x

0.3x

0.4x

Working distance 工作距

440

306

240

Distortion 畸变

<0.03%

<0.01%

<0.01%

W.D 基准工作距离

384.9mm

Filter size 滤镜尺寸

M52*0.75

Illumination照度

68%

Mount接口

F

Weight 重量

200g
