Current:Home > Products - F/M58 Large Format Lenses - SMV6016F-29M ( 60mm ) Φ66

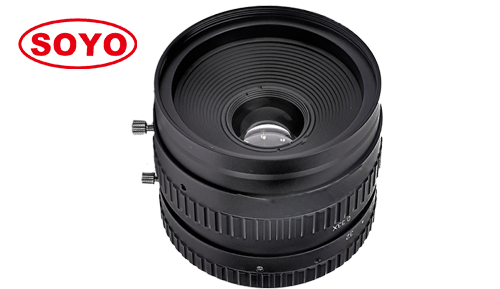

Product name:SMV6016F-29M ( 60mm ) Φ66
Product description:


60mm Φ64 29MP 5μ/7μ Machine Vision FA <0.12% Low Distortion Industrial Recognition Positioning Measurement AI Sort Camera F Mount Megapixel Lenses 线扫F口60mm 2900万像素5μ/7μ解像大靶面全画幅Φ64mm低畸变<0.12%工业镜头(适用于印刷、包装等)


  • High resolution :      29 megapixel cover all 4K & 1080P
  • Mount type :            F mount
  • Low distortion :        <0.12% low distortion use machine vision ITS
  • Magnification:          0.04x~0.33x
  • Application :             Scann, Automation, machine vision, medical, life science.


Model 型号

SMV6016F-29M

Format 靶面

Φ64

Resolution 像素

29Megapixel (up to )

Focal Length 焦距

60mm

Aperture (Close) 光圈

F4.0

Distortion 畸变

<0.12%

Magnification 放大倍率

0.04x

0.167x

0.33x

Working distance 工作距

1538

385

200

FOV 视野

1592

387

193

W.D 基准工作距离

384.9mm

Filter size 滤镜尺寸

M65*0.75

Illumination照度

45%

Mount接口

F

Weight 重量

200g
