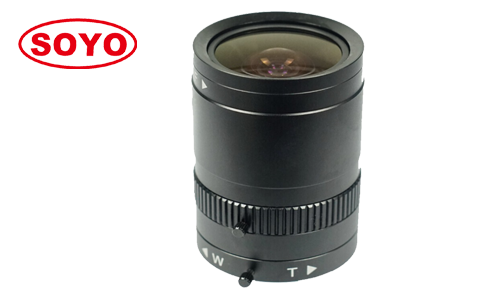

3.8-18mm 1/1.7" 12.0 Megapixel Lenses Manual Iris Varifocal CCTV Lens Wide Angle Security Surveillance Camera Optical Face Recognition Smart City Indoor/Outdoor CS Mount China Video Optics
Model 型号
SVM3818BIR-12M
Resolution 像素
12 Megapixel
Format 靶面
1/1.7"
Focal Length 焦距
3.8-18mm
IR day & night 紅外
IR
Aperture (close) 光圈
F1.5 Manual Iris
Angle of View (°) 视场角
156*111*80
1/1.8"
1/2"
Relative illumination 照度
80% ~ 45%
M.O.D 最近物距
0.3m
Distortion 畸变
<1%
CRA 主光线夹角
/
B.F.L 光学后焦
12.5mm
M.F.L 机械后焦
T.T.L 光学总长
<96mm

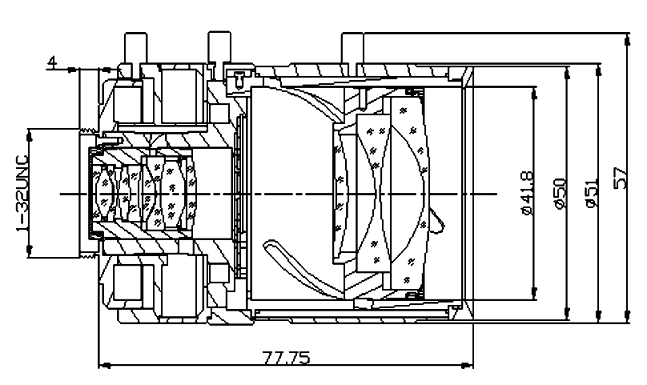

Size 尺寸
Φ51x77.8mm
Mount 接口
CS
Weight 重量
251g
Marks 备注
