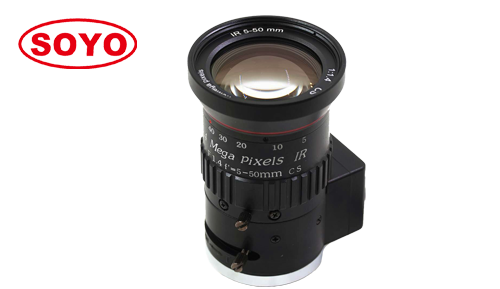

Product name：SVD0550IR-3M ( 5-50mm ) 1/2.7"

Product description：

5-50mm 1/2.7" 3.0 Megapixel Lenses Varifocal CCTV Lens Security Surveillance Camera Optical Long Distance ITS Traffic Smart City Face Recognition Toll Gate Exit/entry IR C/CS Mount China Made Video Optics Vision Accessorry

High resolution : 3.0 megapixel cover all 3MP,1080P, 720P 像素300万
Large format : 1/2.7" size covering 1/2.7", 1/3" 靶面
IR correction : 24h day & night vision 400~850nm 日夜红外
B.F.L : 8.1~15.73mm 光学后焦
T.T.L : 84.4mm 光学总长
Application : All bldg., exit/entrance, bank, traffic, highway etc. 出入库地铁高速

Model 型号		SVD0550IR-3M
Resolution 像素		3.0 Megapixel
IR Corrected 红外矫正		IR
Format 靶面		1/2.7"
Focal Length 焦距		5-50mm
Aperture (Close/360) 光圈		F1.4 DC Iris
Angle of View (°) 视场角	1/1.8"	/
	1/2.7"	615431
	1/3"	564821.3
M.O.D 最近物距		1.5m

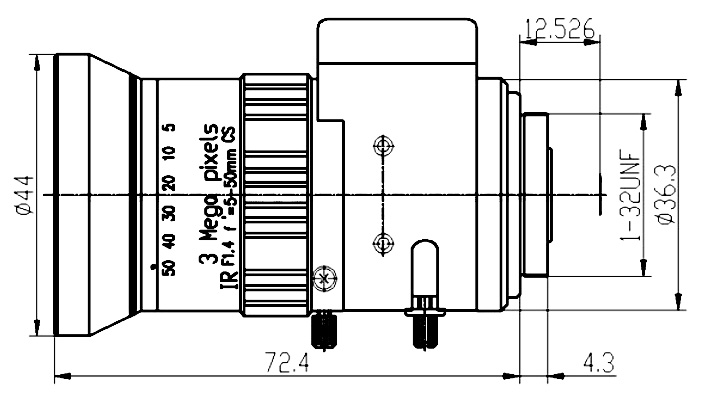

Size 尺寸		Φ44x76.7mm
Distortion 畸变		<5.1%
Mount 接口		CS
Weight 重量		230g
