Current:Home > Products - 1.2" 1.1" 25MP FA Lens - S11MV1228-20M ( 12mm ) 1.1"

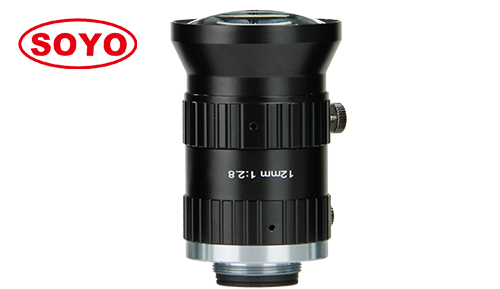

Product name:S11MV1228-20M ( 12mm ) 1.1"
Product description:


12mm 1.1" 20MP Megapixel Lenses Machine Vision 0.002x~0.103x Magnification <1.5% Low Distortion Industrial Automation FA Positioning Measurement Recognition 4K 8K Camera China Optics Lens

  • High resolution :       20 megapixel cover all 8K & 4K
  • Large format :          1.1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion:         <1.5% low distortion use machine vision ITS
  • Magnification:           0.002x ~ 0.103x
  • Illumimation :           45%
  • Application :             Automation, machine vision, medical, life science, ITS, SMT, AOI


Model 型号

S11MV1228-20M

Resolution 像素

20 Megapixel

Format 靶面

1.1"

Focal Length 焦距

12mm

B.F.L 光学后焦

10.6mm

Aperture (Close) 光圈

F2.8 Manual Iris

Angle of View (°)

视场角 D*H*V

1.1"

67*57*45

1"

66.1*55*42.3

2/3"

48*39*30

M.O.D 最近物距

0.1m

Distortion 畸变

<1.5%

Size 尺寸

Φ48*67.2mm

Mount 接口

C

Weight 重量

225g
