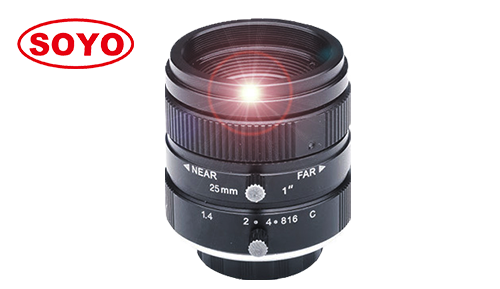

25mm 1" 5MP Megapixel Lenses Machine Vision FA <1% Low Distortion F1.4 Industrial Recognition Automatic Computer Vision AI Color Sort Camera Optics China Lens Lentz
-
High resolution : 5.0 megapixel cover all 4K & 1080P
-
Large format: 1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
-
Big aperture : F1.4 big aperture makes imaging far better
-
Low distortion : <1% low distortion use machine vision ITS
-
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.
|
Model 型号
|
S1MV2514-5M
|
|
Resolution 像素
|
5.0 Megapixel
|
|
B.F.L 光学后焦
|
/
|
|
Format 靶面
|
1"
|
|
Focal Length 焦距
|
25mm
|
|
Aperture (Close) 光圈
|
F1.4 Manual iris
|
|
Angle of View
视场角 D*H*V
|
1"
|
35*28*21
|
|
2/3"
|
/
|
|
1/3"
|
/
|
|
M.O.D 最近物距
|
0.4m
|
|
Distortion 畸变
|
<1.0%
|
|

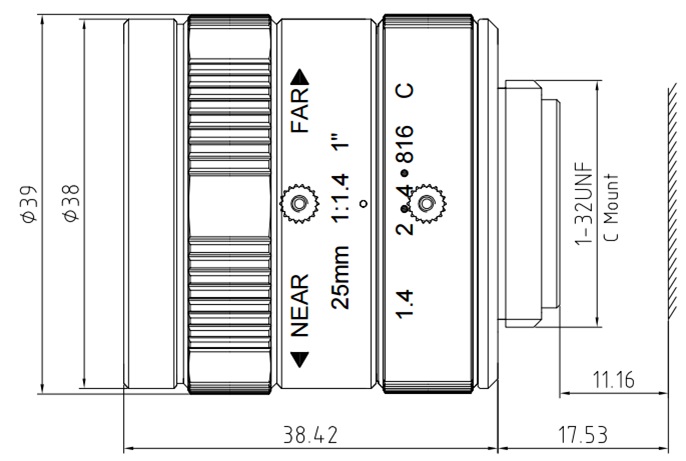

Size 尺寸
|
Φ39*39mm
|
|
Mount 接口
|
C
|
|
Weight 重量
|
120g
|
|
