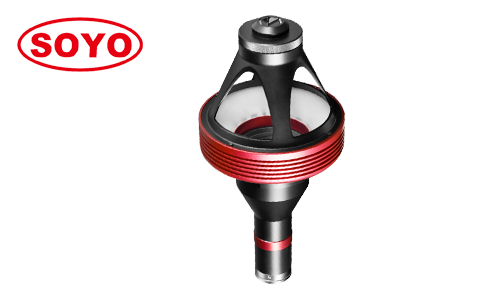

Product name:Telecentric 360 Degree Inspection Lens
Product description:

Telecentric 360° Degree Multi-angle Outwall Surface Imaging Megapixel Lenses Low Distortion FA Machine Vision Industrial Automation Camera Lens China Optics Round View ( 360度外壁检测远心镜头 )

* Optics module consisted by Bi-telecentric lens,LED ring lighting,6 prism.

* The top and side views show exactly the same magnification.

* Support kinds of sensor from 1/3" to 59mm.

* Used for pharmacy, bottle, cap, tube, container  用于烟草、饮料瓶装、管类、罐类等检测


Download : SODMV1 ( Telecentric 360 Degree )





Model 型号

SODMV1

Wave length (nm) 波长

400-600nm

MTF30 (lp/mm)

>135lp/mm

Format 靶面

2/3”

Working distance (mm) 工作距

1.5-5mm

Aperture 光圈

F6.5

Illuminator voltage (v) 电压

DC 24

Power (w) 功率

18w

Size 尺寸

Φ123*256

Mount 接口

C

Weight (g) 重量

520

Screw thread 螺纹

Max object inspection height (mm)

M1.0

1.5mm

M1.2

1.75mm

M1.7

1.8mm

M2.0

2.4mm

M2.5

2.7mm

MΦ3

4mm

MΦ4

4.9mm

MΦ5

5mm

MΦ6

6mm

MΦ8

5mm

MΦ10

4.5mm

360 degree multi-angle imaging lenses; Inspect 1-10mm object;




Marks: Tabacco airhole inspection  ( Picture 1 )
