Current:Home > Products - 2/3" 5.0 Megapixel Lens - SMV1614-5MC ( 16mm ) 2/3" B

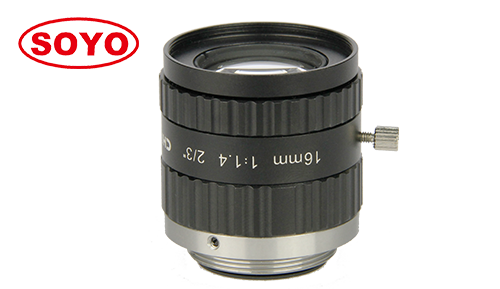

Product name:SMV1614-5MC ( 16mm ) 2/3" B
Product description:


16mm 2/3" 5MP Megapixel Lenses Machine Vision FA <0.1% Low Distortion F1.4 Industrial Automation Recognition Positioning Measurement AI Sort Camera CCTV Lens China Optics

  • High resolution :      5.0 megapixel cover all 4K & 1080P
  • Large format:           2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Big aperture :           F1.4 big aperture makes imaging far better
  • Low distortion :        <0.1% low distortion use machine vision ITS
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.


    Model 型号

    SMV1614-5MC

    Resolution 像素

    5.0 Megapixel

    Format 靶面

    2/3"

    Focal Length 焦距

    16mm

    Aperture  (Close) 光圈

    F1.4 Manual Iris

    Angle of View (°) 视场角

    2/3"

    37.3*30.3*23

    M.O.D 最近物距

    0.3m

    Size 尺寸

    Φ32.9*33.9

    Screw filter 滤镜螺纹

    M33.5*0.5

    Distortion 畸变

    <0.1%

    Mount 接口

    C

    Weight重量

    150g


    ------------------------------------------------------------------------------------------------------------
