Current:Home > Products - 4K M12 Lenses - SBF60501-6M ( 5mm ) 1/1.8"
Product name:SBF60501-6M ( 5mm ) 1/1.8"
Product description:

5mm 1/1.8" 6.0/2.0 Megapixel Board M12 S-mount Lenses Security CCTV Surveillance Fixed Lens Consummer Industrial Bullet Dome Camera Accessory China Optics Origin 大靶面高清200万(600万可选)1/1.8"扳机镜头

  • High resolution:       6 megapixel can cover 5MP. 3MP.
  • Big aperture:           F2.5 big aperture support evening dark vision
  • Large format:          1/1.8" large format covering 1/1.8", 1/2"
  • Construction :         Metal body, glass element
  • Application:           Smart home, security surveilance, office, room, bank etc.



    Model 型号

    SBF60501-6M

    Resolution 像素

    6.0 Megapixel ( 2.0Megapixel Optional )

    Format  靶面

    1/1.8"

    Focal Length  焦距

    5.0 mm

    Aperture  (Close) 光圈

    F2.5 Fixed Iris

    Angle of View (°)

    1/1.8"

    105*84*52

    视场角 D*H*V

    1/2"

    /

    1/3"

    /

    M.O.D  最近物距

    0.3m

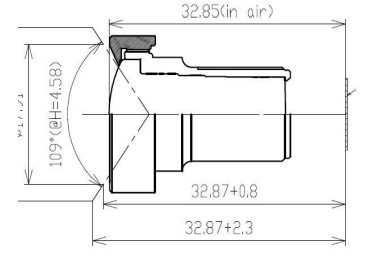

    Size 尺寸

    Φ20x25.2mm

    Distortion 畸变

    -4.6%

    Mount 接口

    M12

    Weight 重量

    16g
