CURRENT:HOME > PRODUCTS - 1" 10 Megapixel Lenses - S1MV2016-8M ( 20mm ) 1"

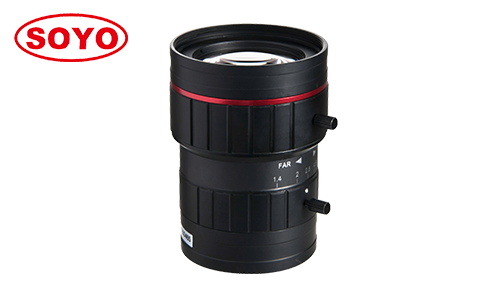

Product name:S1MV2016-8M ( 20mm ) 1"
Product description:

FA Lens Features:

  • High resolution :      8.0 megapixel cover all 4K & 1080P
  • Large format:          1" size covering 1", 3/4, 2/3", 1/1.8", 1/2" camera
  • Low distortion :       -0.93% low distortion use machine vision ITS
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.



Model

S1MV2016-8M

Resolution

8.0-10 Megapixel

B.F.L

Format  (inch)

1"

Focal Length   (mm)

20mm

Aperture   (Close)

F1.6 Manual Iris

Angle of View (°)

1"

43.6*35.4*26.8

2/3"

1/2"

M.O.D  (m)

0.5m

Size

Φ48.5x60.3mm

Distortion

-0.93%

Mount

C

Weight   (g)

251
