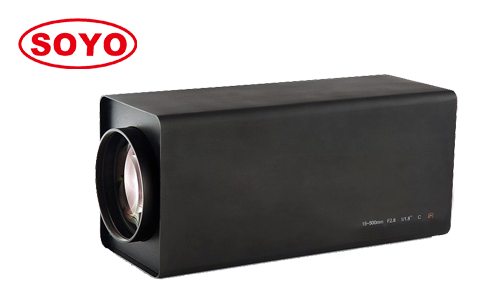

Product name:SMZ10320DPIR-2M (10-320mm)
Product description:

CCTV Lens Features:

  • High resolution:       2.0 megapixel can cover 1080P, 720P
  • Focal length:           10-320mm suitable for shor distance .
  • Large format:          1/2" can cover 1/2",1/2.5", 1/2.7"
  • IR correction :          24h day & night vision
  • Preset function:       Preset function makes auto-run.
  • Application:          Highway,train, power station, forest, city surveillance, border.

    Model SMZ10320DPIR-2M
    Format  (inch) 1/2"
    Focal length  (mm) 10~320mm
    Aperture F2.0-360
    Back focal length  (mm) 13.26mm
    Camera mount  (Flange back) C
    Operation Iris DC
    Focus Motorized
    Zoom Motorized
    Field of view (D*H*L) 1/2" Wide 51.2°×41.7°×31.8°
    Tele 1.37°×1.11°×0.84°
    Minimum object distance 1.5m
    Effective diameter Front Ø64.8mm
    Rear Ø18.7mm
    Filter screw size
    (Coating) 400~950nm
    Feature 2.0MP  ED

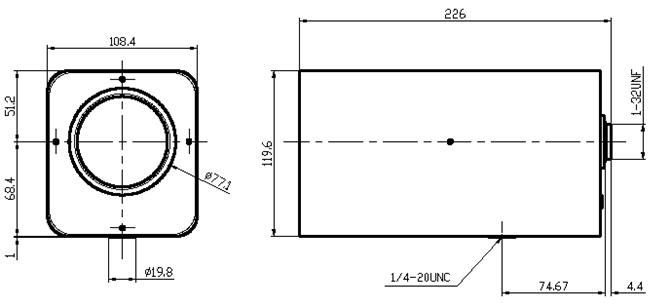

    Dimension(DXHXL) 108.4mm×119.6mm×226mm
    Application temperature range -10ºC ~ +50ºC
    Total Weight
    Marks Preset, IR
