Current:Home > Products - 2/3" 8.0 Megapixel Lens - SMV1614-8M ( 16mm ) 2/3”
Product name:SMV1614-8M ( 16mm ) 2/3”
Product description:


16mm 2/3" 8MP Machine Vision FA <0.3% Low Distortion F1.4 Industrial Recognition 4K ITS AI Sort Camera C Megapixel Lenses


  • High resolution :      8.0 megapixel cover all 4K & 1080P
  • Large format:          2/3" size covering 2/3", 1/1.8", 1/2" camera
  • Big aperture :          F1.4 big aperture makes imaging far better
  • Low distortion :        0.3% low distortion use machine vision ITS
  • Application :            Automation, machine vision, medical, life science, ITS, SMT, AOI.

    Model

    SMV1614-8M

    Resolution

    8.0 Megapixel

    IR Corrected

    Format  (inch)

    2/3"

    Focal Length  (mm)

    16mm

    Aperture  (Close)

    F1.4 Manual Iris

    Angle of View (°)

    2/3"

    30.8x23.4

    1/2"

    22.6x17

    1/3"

    17x12.8

    M.O.D  (m)

    0.1

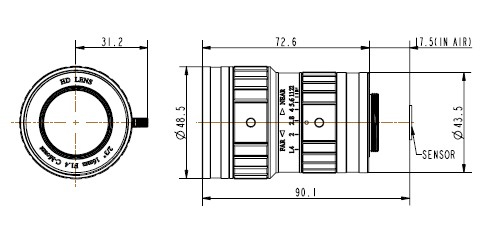

    Size

    Φ49*72.6

    Distortion

    0.3%

    Mount

    C

    Weight  (g)

    302
